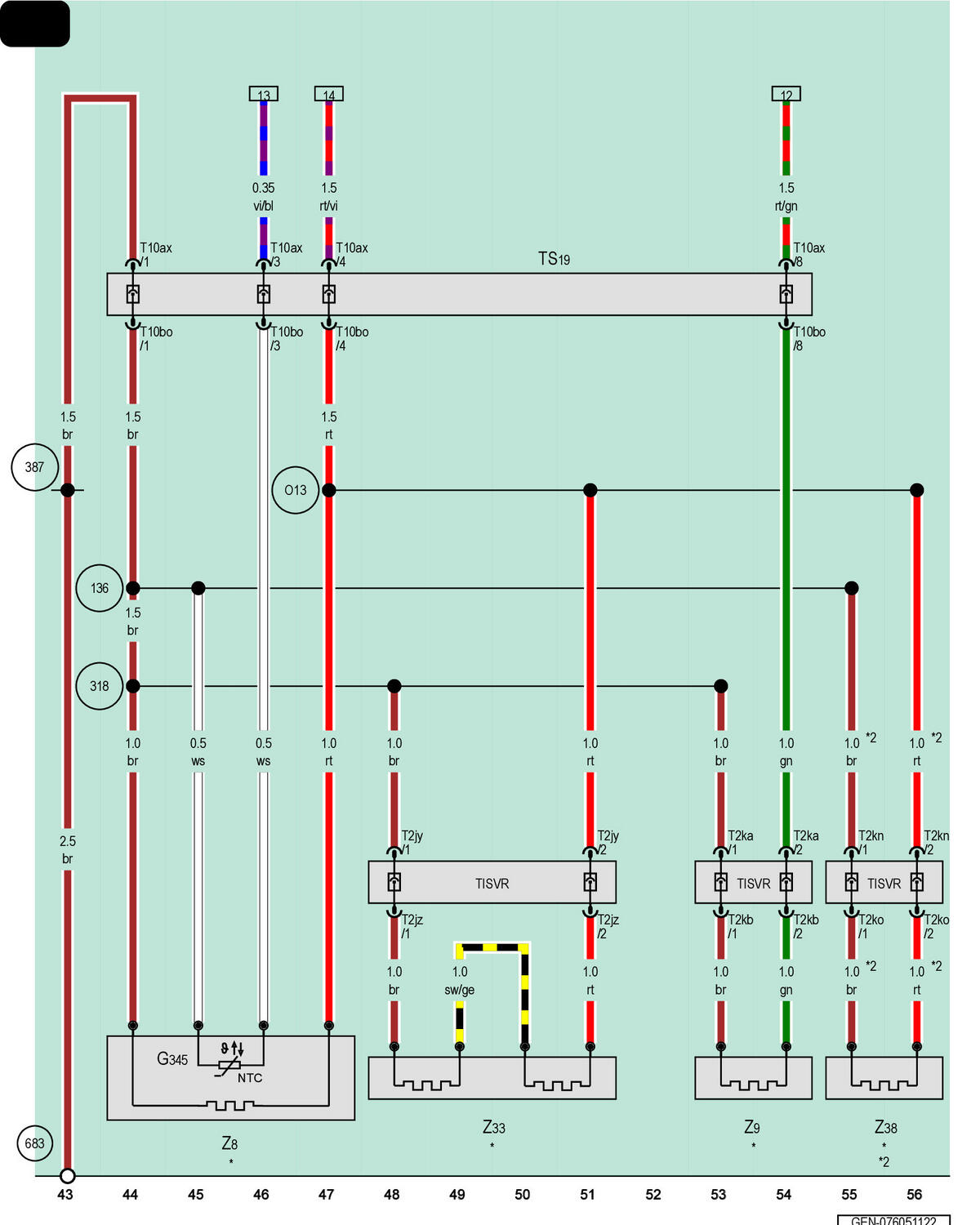

Front Passenger Seat Heating Element, Front Passenger Backrest Heating Element, Front Passenger Seat Bolster Heater, Heated Front Passenger Seat Extension
G345
Right Front Seat Temperature Sensor
T2jy
2-Pin Connector, Black
T2jz
2-Pin Connector, Black
T2ka
2-Pin Connector, Black
T2kb
2-Pin Connector, Black
T2kn
2-Pin Connector, Black
T2ko
2-Pin Connector, Black
T10ax
10-Pin Connector, White
T10bo
10-Pin Connector, White
TISVR
Coupling Station in Right Front Seat
TS19
Front Passenger Seat Coupling Point
Z8
Front Passenger Seat Heating Element
Z9
Front Passenger Backrest Heating Element
Z33
Front Passenger Seat Bolster Heater
Z38
Heated Front Passenger Seat Extension
136
Ground Connection 2 (in Heated Seats Wiring Harness)
318
Ground Connection 4 (in Heated Seats Wiring Harness)
387
Ground Connection 22 (in Main Wiring Harness)
683
Ground Connection on Right Front Side Member
O13
Connection 2 (in Heated Seats Wiring Harness)
*
Pre-Wired Component
*2
Optional Equipment
