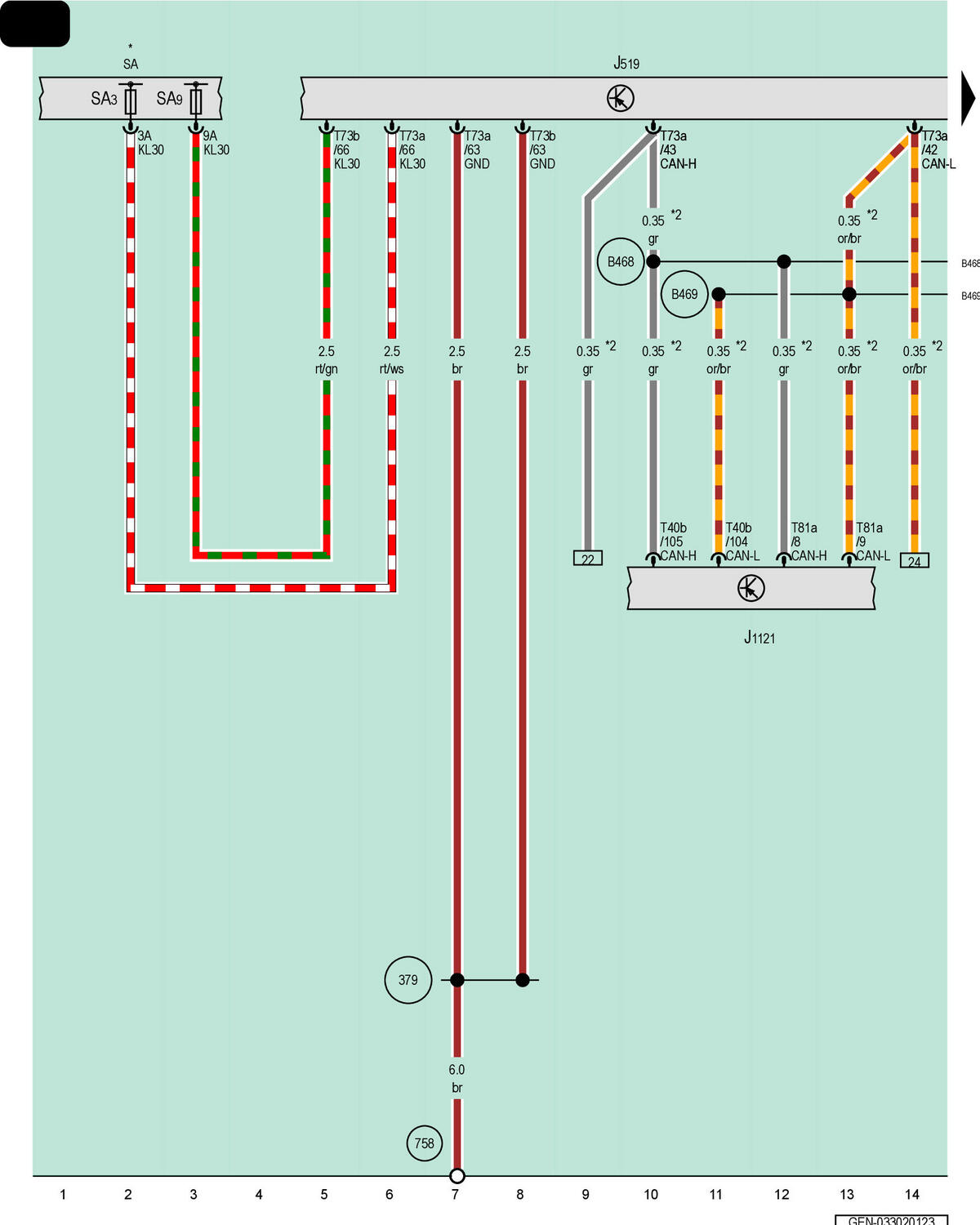

Vehicle Electrical System Control Module, Driver Assistance Systems Control Module

Courtesy of AUDI OF AMERICA, LLC

J519

Vehicle Electrical System Control Module

J1121

Driver Assistance Systems Control Module

SA

Fuse Panel A

SA3

Fuse 3 (On Fuse Panel A)

SA9

Fuse 9 (On Fuse Panel A)

T40b

40-Pin Connector, Black

T73a

73-Pin Connector, Black

T73b

73-Pin Connector, Black

T81a

81-Pin Connector, Black

379

Ground Connection 14 (in Main Wiring Harness)

758

Ground Connection 3 on Center Tunnel

B468

Connection 4 (in Main Wiring Harness)

B469

Connection 5 (in Main Wiring Harness)

*

Refer to Applicable Wiring Diagram for Fuse Positions

*2

Depending on Equipment
