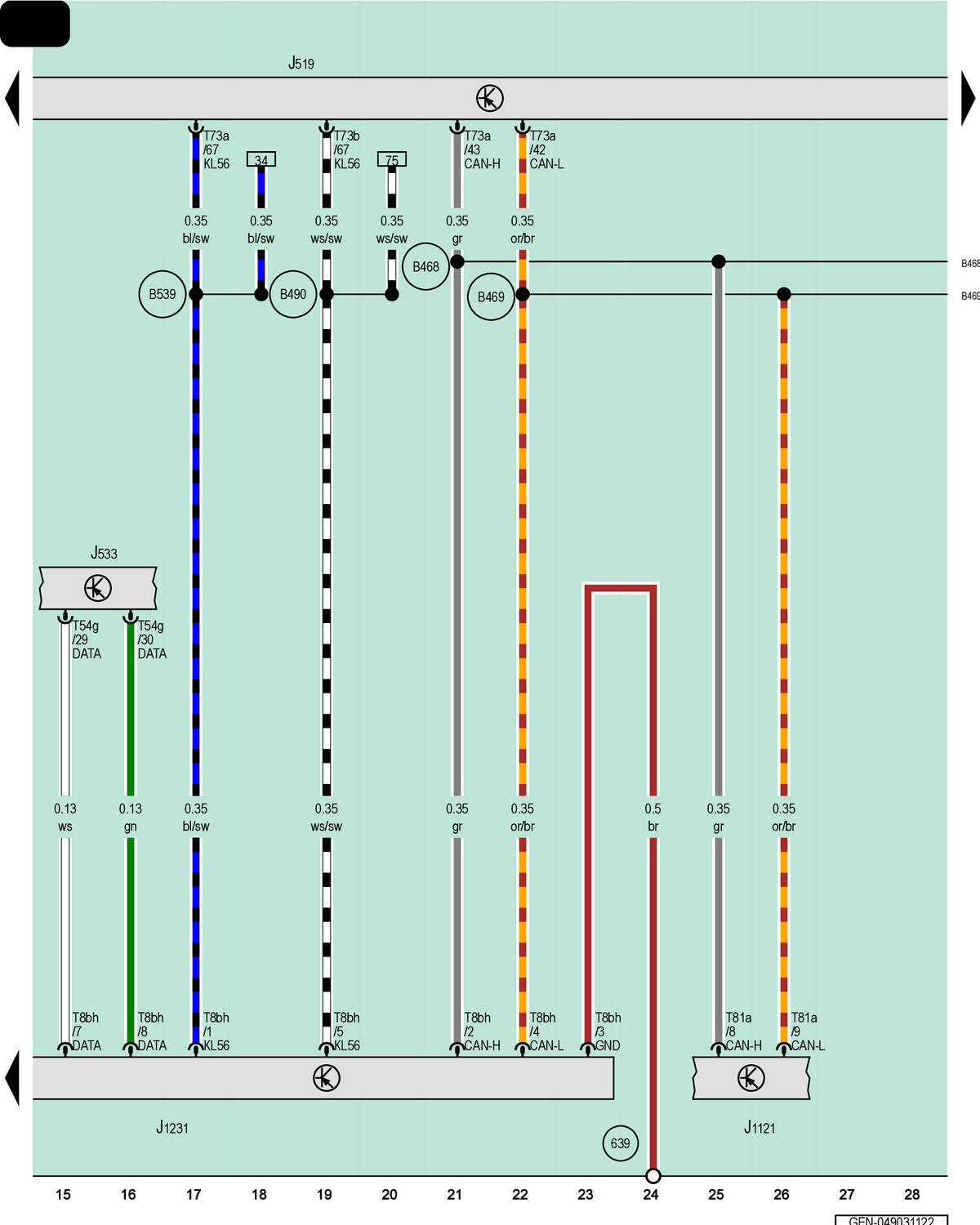

Vehicle Electrical System Control Module, Driver Assistance Systems Control Module, Control Module For Projection Module In Matrix Headlamps

Courtesy of AUDI OF AMERICA, LLC

J519

Vehicle Electrical System Control Module

J533

Data Bus on Board Diagnostic Interface

J1121

Driver Assistance Systems Control Module

J1231

Control Module for Projection Module in Matrix Headlamps

T8bh

8-Pin Connector, Black

T54g

54-Pin Connector, Gray

T73a

73-Pin Connector, Black

T73b

73-Pin Connector, Black

T81a

81-Pin Connector, Black

639

Ground Connection on Left A-Pillar

B468

Connection 4 (in Main Wiring Harness)

B469

Connection 5 (in Main Wiring Harness)

B490

Connection 26 (in Main Wiring Harness)

B539

Connection 30 (in Main Wiring Harness)
