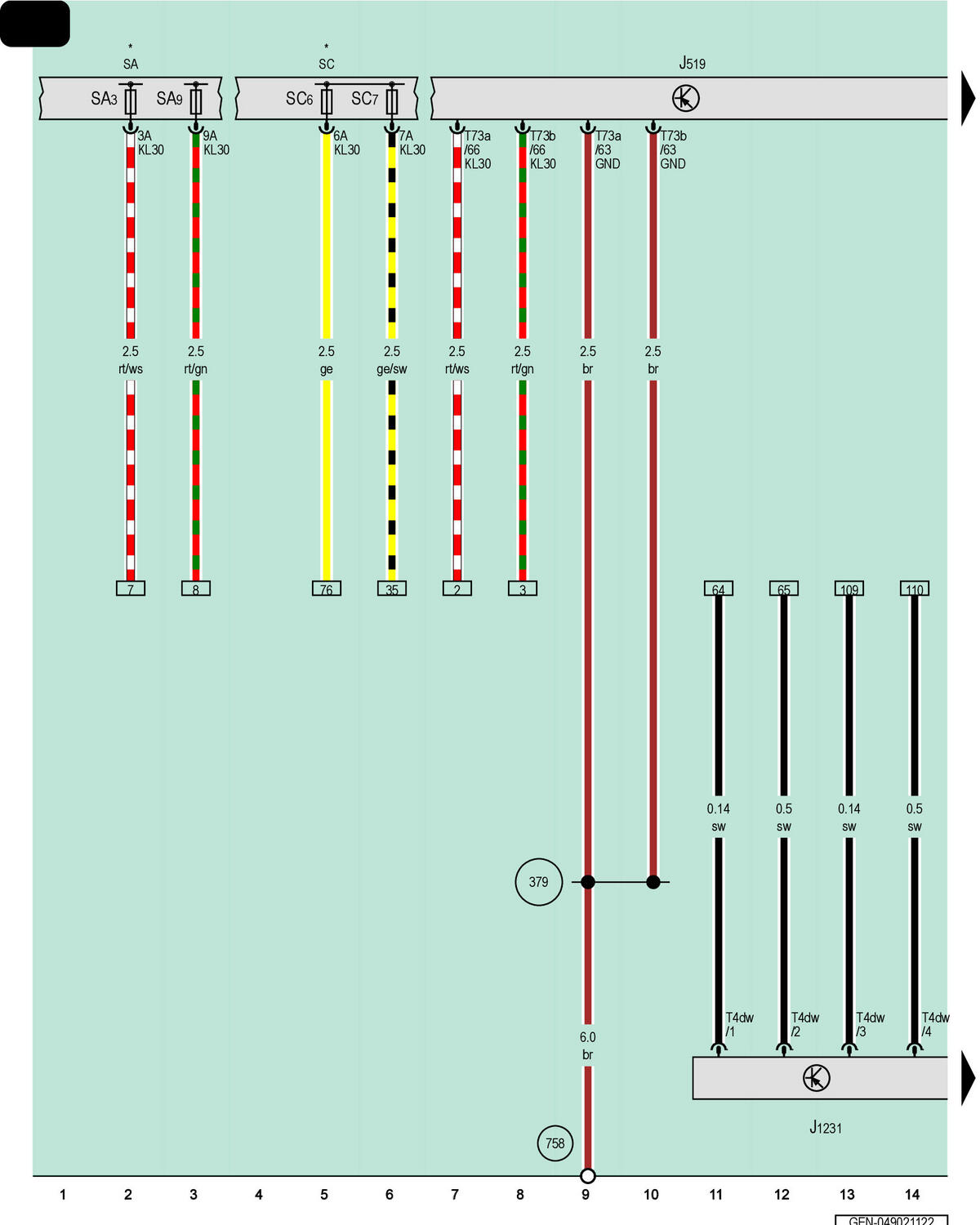

Vehicle Electrical System Control Module, Control Module For Projection Module In Matrix Headlamps

Courtesy of AUDI OF AMERICA, LLC

J519

Vehicle Electrical System Control Module

J1231

Control Module for Projection Module in Matrix Headlamps

SA

Fuse Panel A

SA3

Fuse 3 (On Fuse Panel A)

SA9

Fuse 9 (On Fuse Panel A)

SC

Fuse Panel C

SC6

Fuse 6 (On Fuse Panel C)

SC7

Fuse 7 (On Fuse Panel C)

T4dw

4-Pin Connector, Brown

T73a

73-Pin Connector, Black

T73b

73-Pin Connector, Black

379

Ground Connection 14 (in Main Wiring Harness)

758

Ground Connection 3 on Center Tunnel

*

Refer to Applicable Wiring Diagram for Fuse Positions
