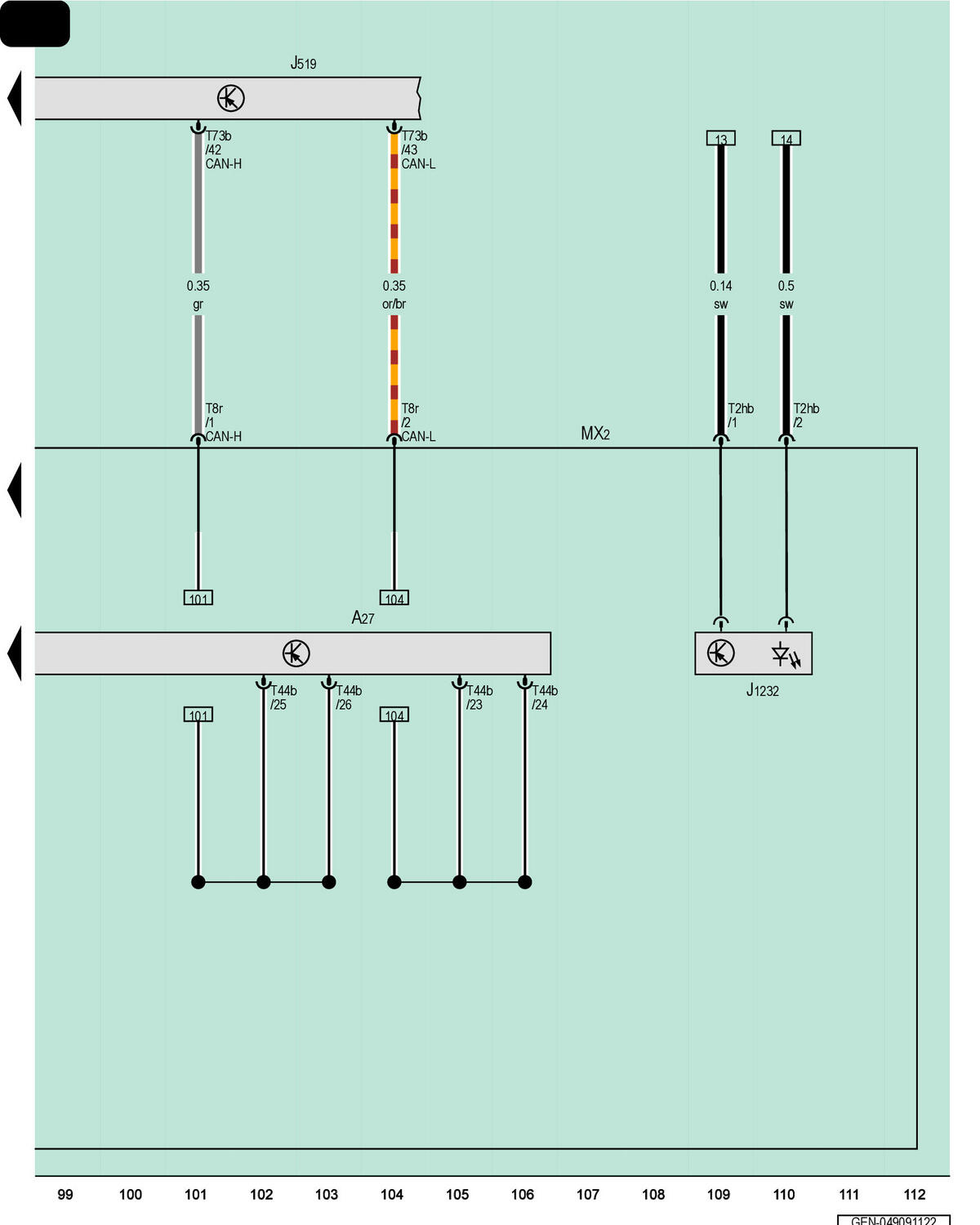

Right Led Headlamp Power Output Module 1, Vehicle Electrical System Control Module, Right Matrix Headlamp Projection Module, Right Front Headlamp

Courtesy of AUDI OF AMERICA, LLC

A27

Right LED Headlamp Power Output Module 1

J519

Vehicle Electrical System Control Module

J1232

Right Matrix Headlamp Projection Module

MX2

Right Front Headlamp

T2hb

2-Pin Connector, Green

T8ah

8-Pin Connector

T8r

8-Pin Connector, Black

T44b

44-Pin Connector

T73b

73-Pin Connector, Black
