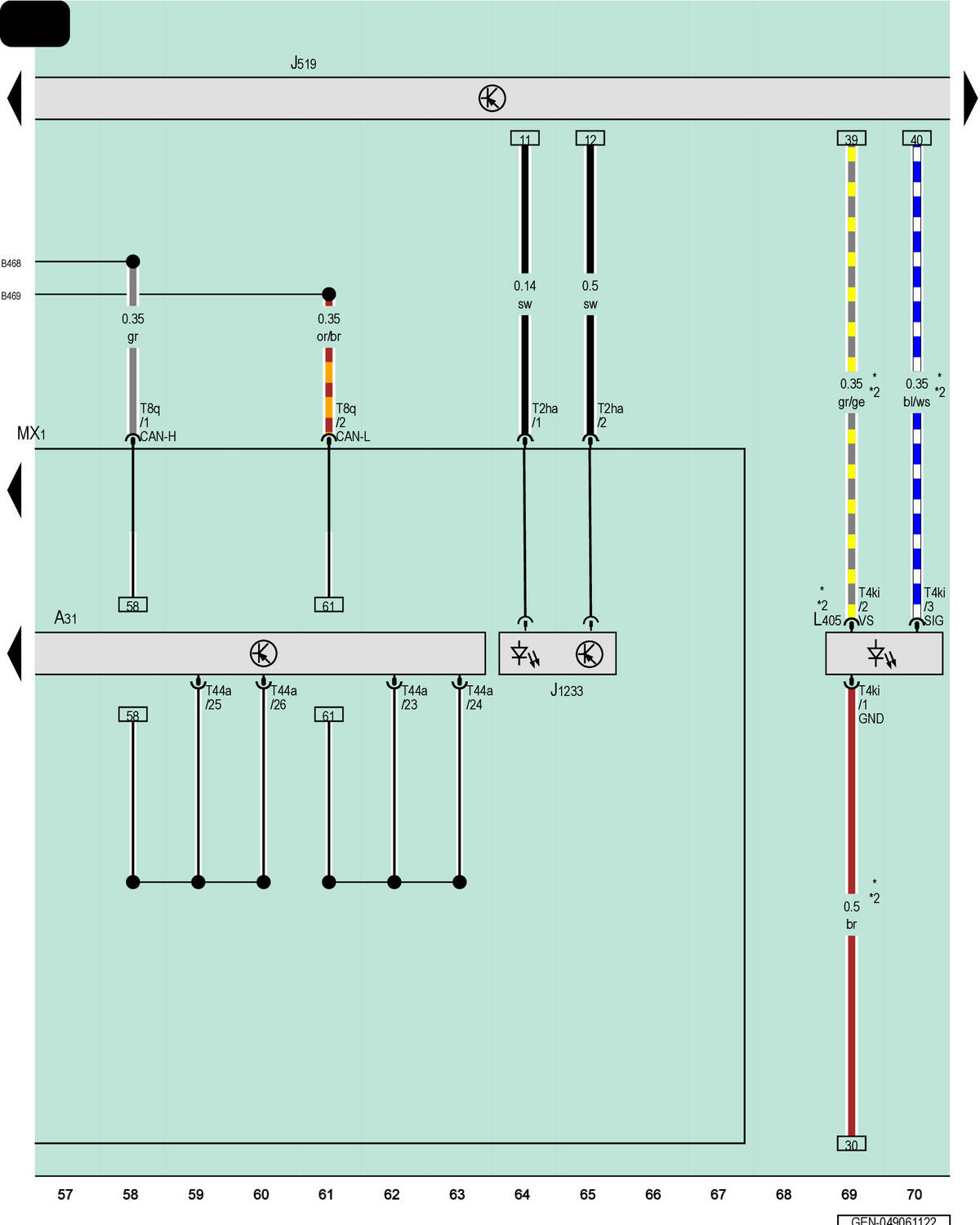

Left Led Headlamp Power Output Module 1, Vehicle Electrical System Control Module, Left Matrix Headlamp Projection Module, Daytime Running Lamp And Position Lamp Led Module, Left Front Headlamp

Courtesy of AUDI OF AMERICA, LLC

A31

Left LED Headlamp Power Output Module 1

J519

Vehicle Electrical System Control Module

J1233

Left Matrix Headlamp Projection Module

L405

Daytime Running Lamp and Position Lamp LED Module

MX1

Left Front Headlamp

T2ha

2-Pin Connector, Green

T4ki

4-Pin Connector, Gray

T8q

8-Pin Connector, Black

T44a

44-Pin Connector

B468

Connection 4 (in Main Wiring Harness)

B469

Connection 5 (in Main Wiring Harness)

*

Optional Equipment

*2

From November 2022
