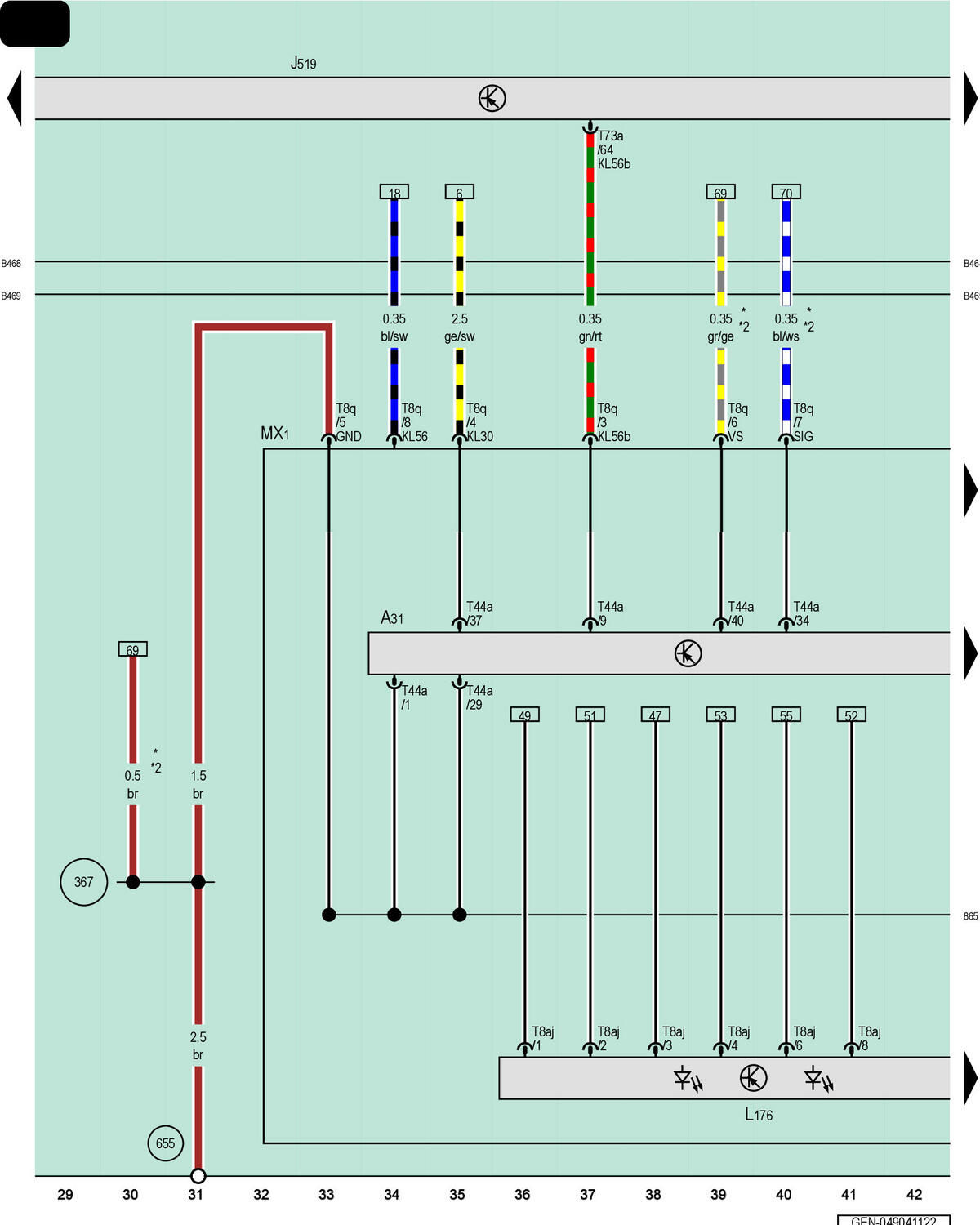

Left Led Headlamp Power Output Module 1, Vehicle Electrical System Control Module, Left Daytime Running Lamp And Position Lamp Led Module, Left Front Headlamp

Courtesy of AUDI OF AMERICA, LLC

A31

Left LED Headlamp Power Output Module 1

J519

Vehicle Electrical System Control Module

L176

Left Daytime Running Lamp and Position Lamp LED Module

MX1

Left Front Headlamp

T8aj

8-Pin Connector

T8q

8-Pin Connector, Black

T44a

44-Pin Connector

T73a

73-Pin Connector, Black

367

Ground Connection 2 (in Main Wiring Harness)

655

Ground Connection on Left Headlamp

B468

Connection 4 (in Main Wiring Harness)

B469

Connection 5 (in Main Wiring Harness)

*

Optional Equipment

*2

From November 2022
