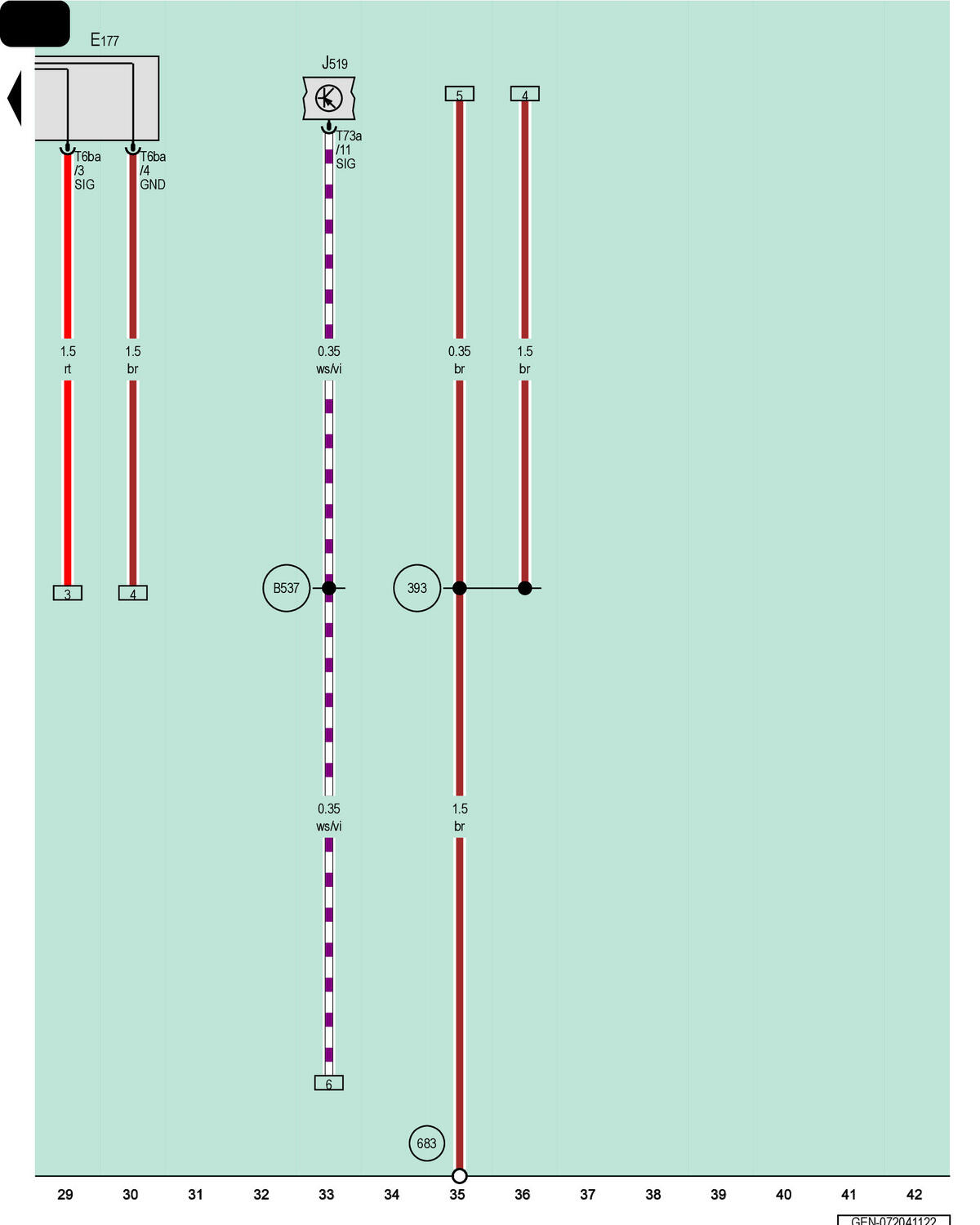

Front Passenger Seat Lumbar Support Adjustment Switch, Vehicle Electrical System Control Module

GWWGEN-072041122Courtesy of AUDI OF AMERICA, LLC

E177

Front Passenger Seat Lumbar Support Adjustment Switch

J519

Vehicle Electrical System Control Module

T6ba

6-Pin Connector, Black

T73a

73-Pin Connector, Black

393

Ground Connection 28 (in Main Wiring Harness)

683

Ground Connection on Right Front Side Member

B537

Connection 28 (in Main Wiring Harness)
