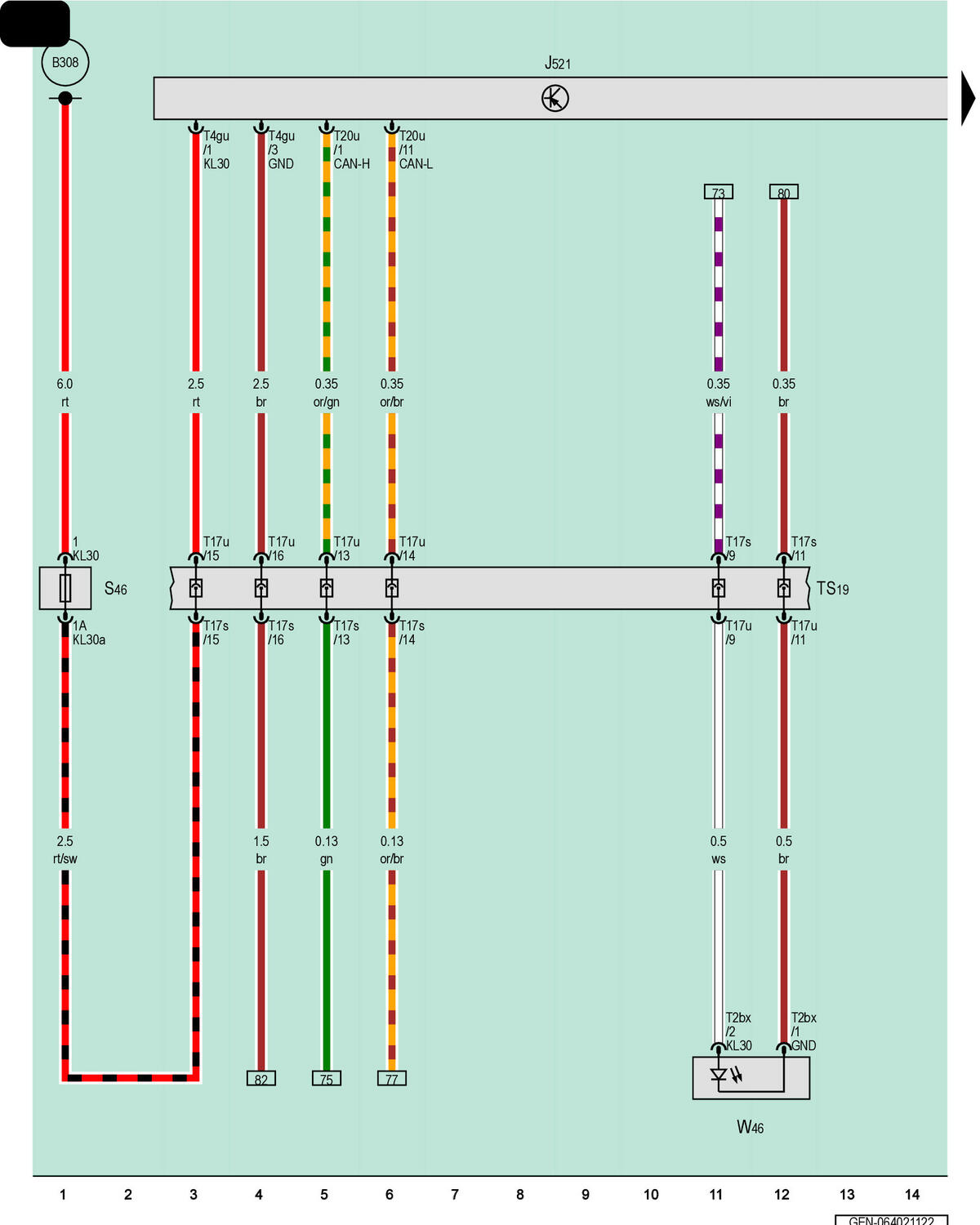

Front Passenger Memory Seat Control Module, Right Rear FOOTWELL Lamp
J521
Front Passenger Memory Seat Control Module
S46
Front Passenger Power Seat Adjustment Circuit Breaker 1
T2bx
2-Pin Connector, Brown
T4gu
4-Pin Connector, Black
T17s
17-Pin Connector, Red
T17u
17-Pin Connector, Red
T20u
20-Pin Connector, Black
TS19
Front Passenger Seat Coupling Point
W46
Right Rear Footwell Lamp
B308
Positive Connection 12 (30) (in Main Wiring Harness)
*
Refer to Applicable Wiring Diagram for Fuse Positions
