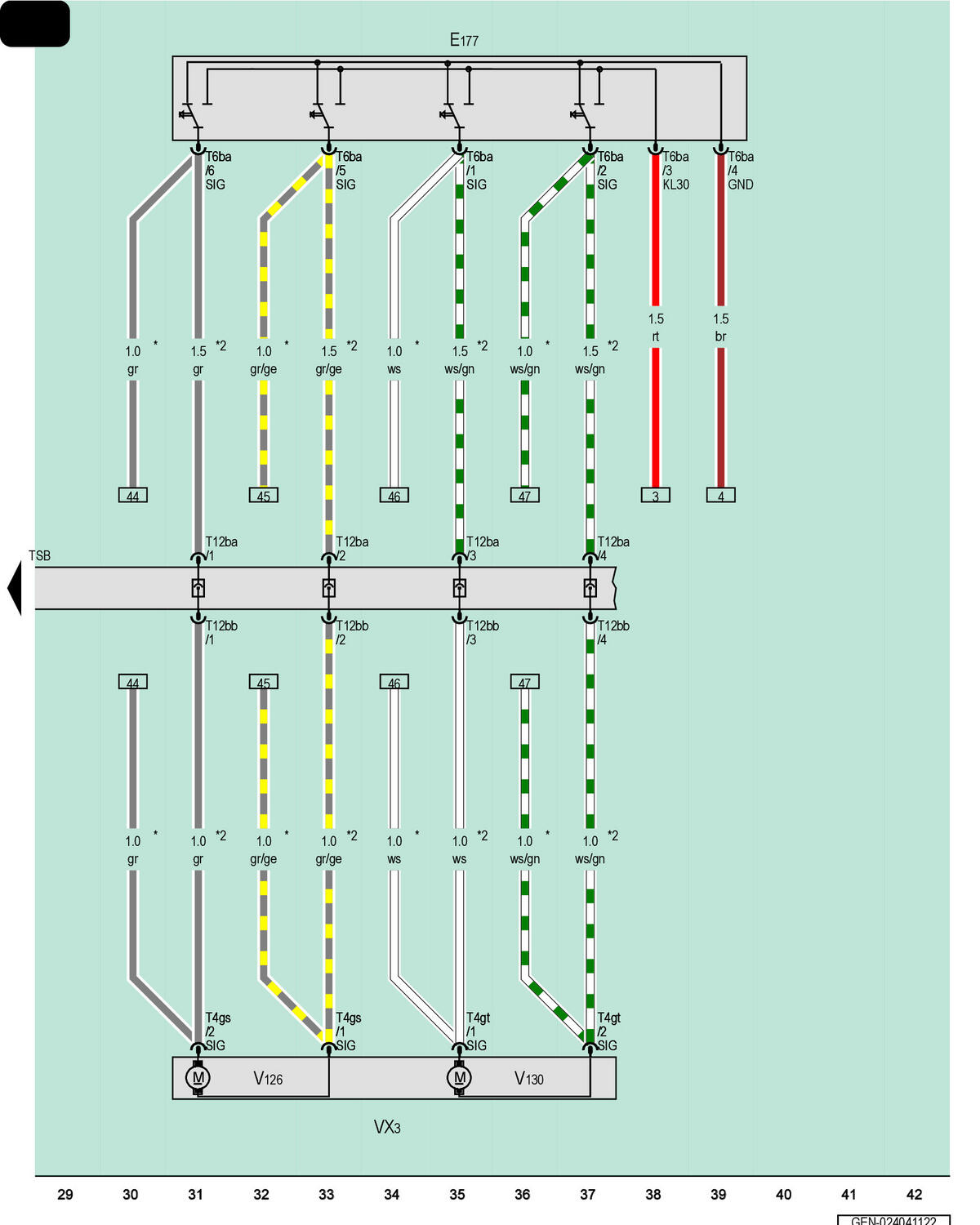

Front Passenger Seat Lumbar Support Adjustment Switch, Front Passenger Seat Lumbar Support

Courtesy of AUDI OF AMERICA, LLC

E177

Front Passenger Seat Lumbar Support Adjustment Switch

T4gs

4-Pin Connector, Black

T4gt

4-Pin Connector, Black

T6ba

6-Pin Connector, Black

T12ba

12-Pin Connector, Black

T12bb

12-Pin Connector, Black

TSB

Front Passenger Seat Backrest Coupling Point

VX3

Front Passenger Seat Lumbar Support

V126

Front Passenger Seat Lumbar Support Curvature Adjustment Motor

V130

Front Passenger Seat Lumbar Support Height Adjustment Motor

For Vehicles Without Seat Ventilation

For Vehicles with Seat Ventilation
