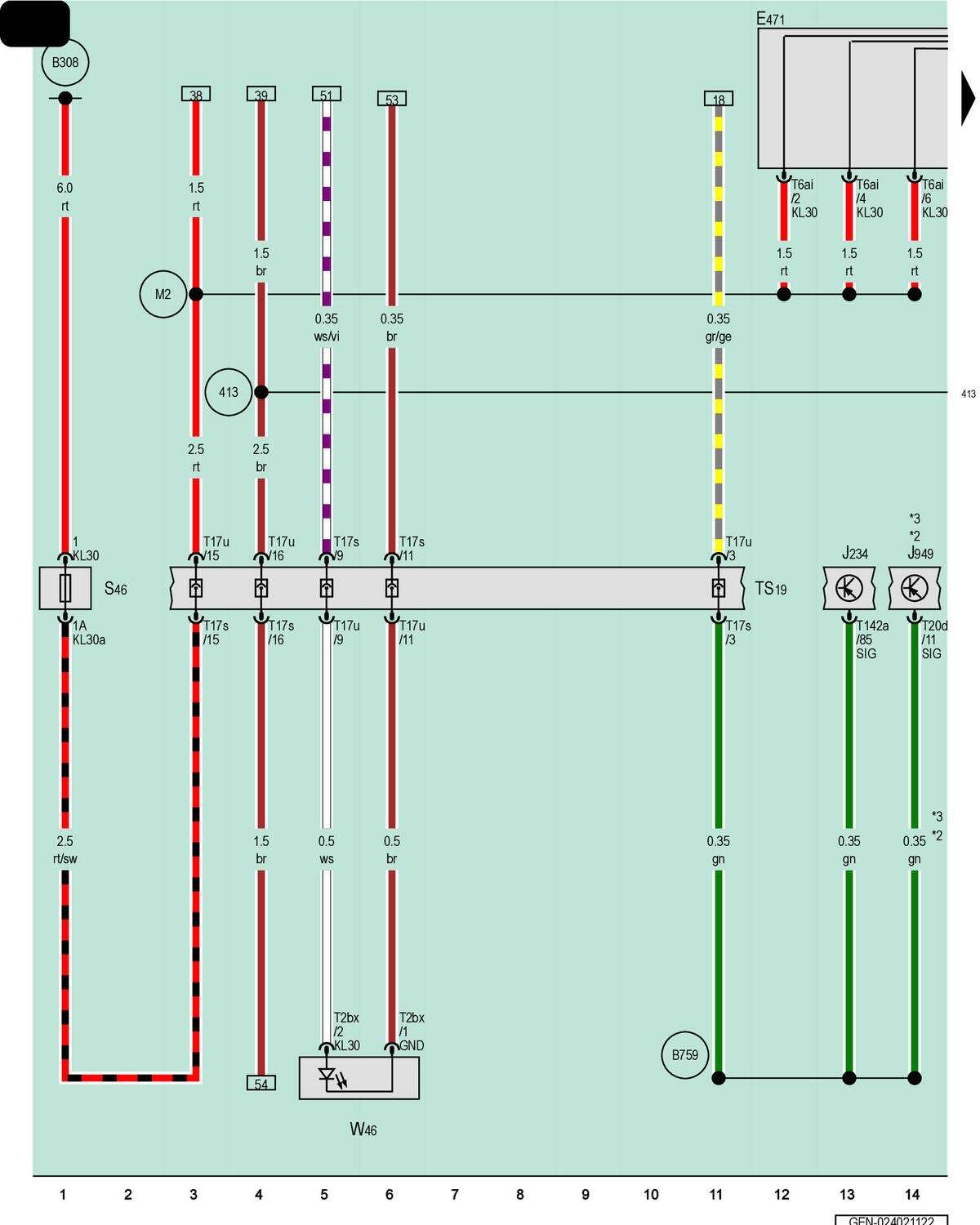

Front Passenger Seat Adjustment Control Head, Airbag Control Module, Control Module For Emergency Call Module And Communication Unit, Right Rear FOOTWELL Lamp

Courtesy of AUDI OF AMERICA, LLC

E471

Front Passenger Seat Adjustment Control Head

J234

Airbag Control Module

J949

Control Module for Emergency Call Module and Communication Unit

S46

Front Passenger Power Seat Adjustment Circuit Breaker 1

T2bx

2-Pin Connector, Brown

T6ai

6-Pin Connector, Black

T17s

17-Pin Connector, Red

T17u

17-Pin Connector, Red

T20d

20-Pin Connector, Black

T142a

142-Pin Connector, Yellow

TS19

Front Passenger Seat Coupling Point

W46

Right Rear Footwell Lamp

413

Ground Connection 4 (in Seat Adjustment Wiring Harness)

B308

Positive Connection 12 (30) (in Main Wiring Harness)

B759

Crash Signal Connection (in Main Wiring Harness)

M2

Positive Connection 2 (30) (in Seat Adjustment Wiring Harness)

*

Refer to Applicable Wiring Diagram for Fuse Positions

*2

For Vehicles with Emergency Call Module

*3

Refer to Applicable Emergency Call Module Wiring Diagram
