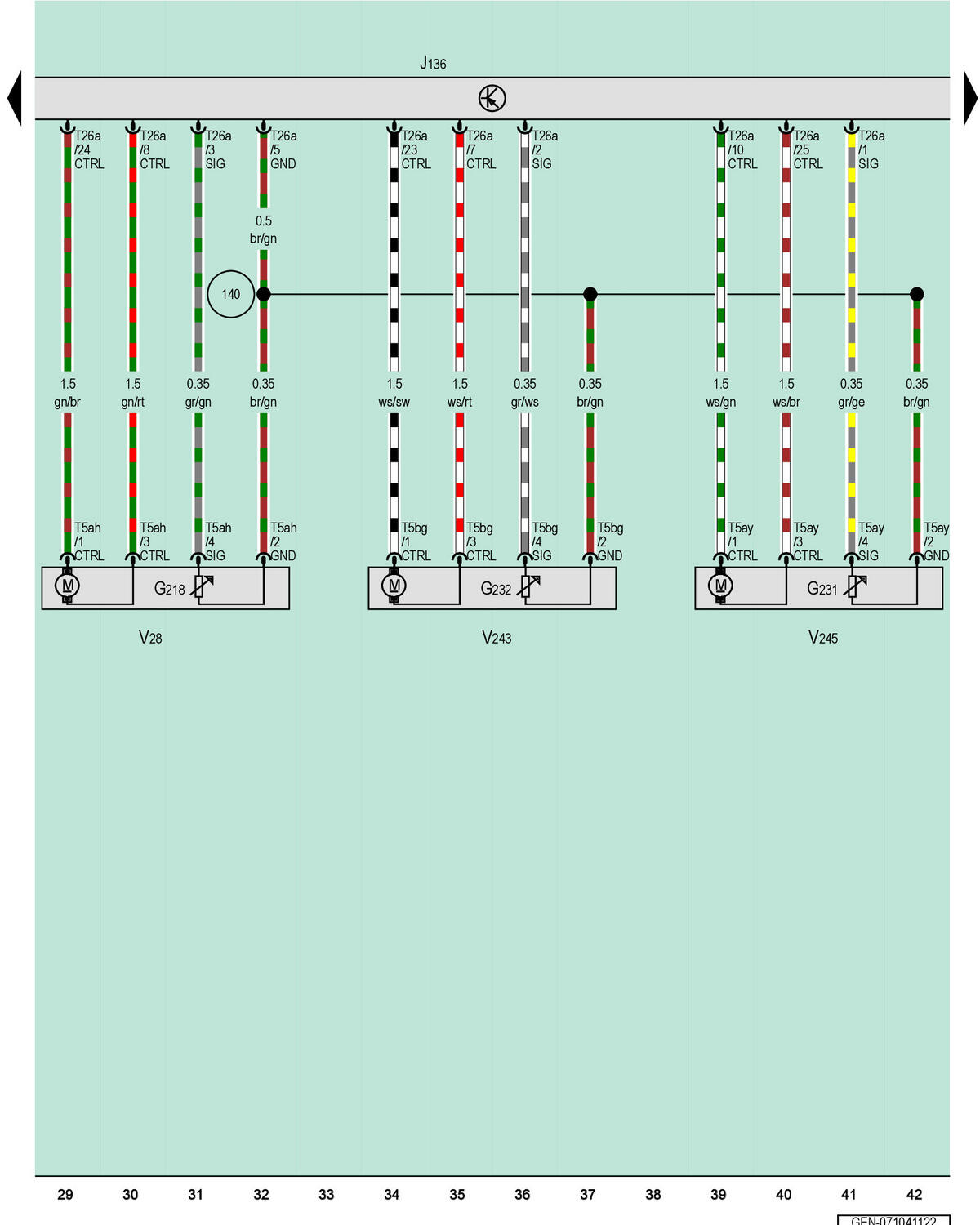

Memory Seat/Steering Column Adjustment Control Module, Driver Seat Forward/Back Adjustment Motor, Driver Seat Angle Adjustment Motor, Driver Seat Height Adjustment Motor

Courtesy of AUDI OF AMERICA, LLC

G218

Driver Seat Forward/Back Adjustment Sensor

G231

Driver Seat Height Adjustment Sensor

G232

Driver Seat Tilt Adjustment Sensor

J136

Memory Seat/Steering Column Adjustment Control Module

T5ah

5-Pin Connector, Brown

T5ay

5-Pin Connector, Brown

T5bg

5-Pin Connector, Brown

T26a

26-Pin Connector, White

V28

Driver Seat Forward/Back Adjustment Motor

V243

Driver Seat Angle Adjustment Motor

V245

Driver Seat Height Adjustment Motor

140

Ground Connection 2 (in Seat Adjustment Wiring Harness)
