Driver Seat Lumbar Support Adjustment Switch, Memory Seat/Steering Column Adjustment Control Module, Driver Seat Lumbar Support, Driver Backrest Adjustment Motor

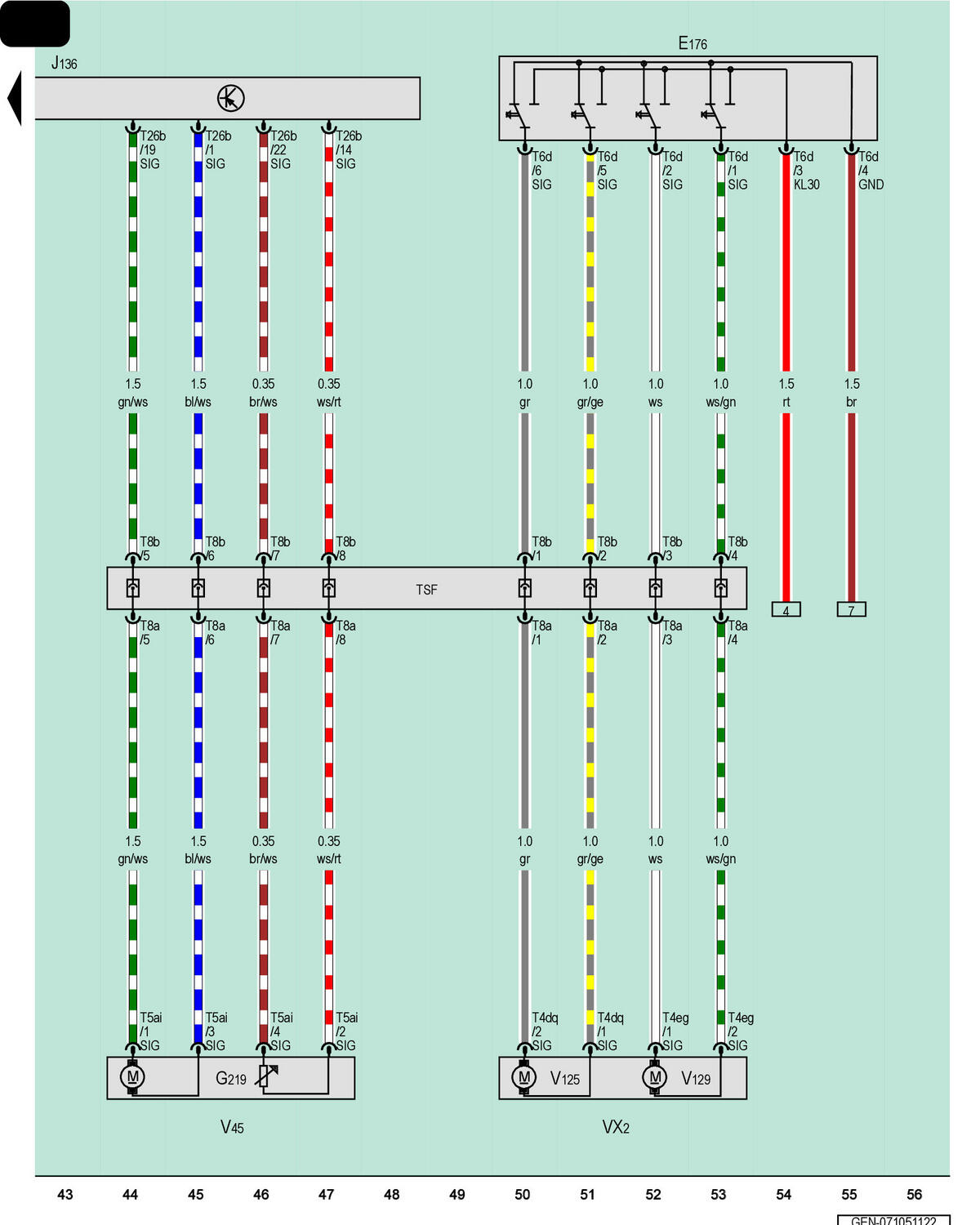

GWWGEN-071051122Courtesy of AUDI OF AMERICA, LLC

E176

Driver Seat Lumbar Support Adjustment Switch

G219

Driver Backrest Adjustment Sensor

J136

Memory Seat/Steering Column Adjustment Control Module

T4dq

4-Pin Connector, Black

T4eg

4-Pin Connector, Black

T5ai

5-Pin Connector, Brown

T6d

6-Pin Connector, Black

T8a

8-Pin Connector, Black

T8b

8-Pin Connector, Black

T26b

26-Pin Connector, Blue

TSF

Driver Seat Backrest Coupling Point

VX2

Driver Seat Lumbar Support

V45

Driver Backrest Adjustment Motor

V125

Driver Seat Lumbar Support Curvature Adjustment Motor

V129

Driver Seat Lumbar Support Height Adjustment Motor
