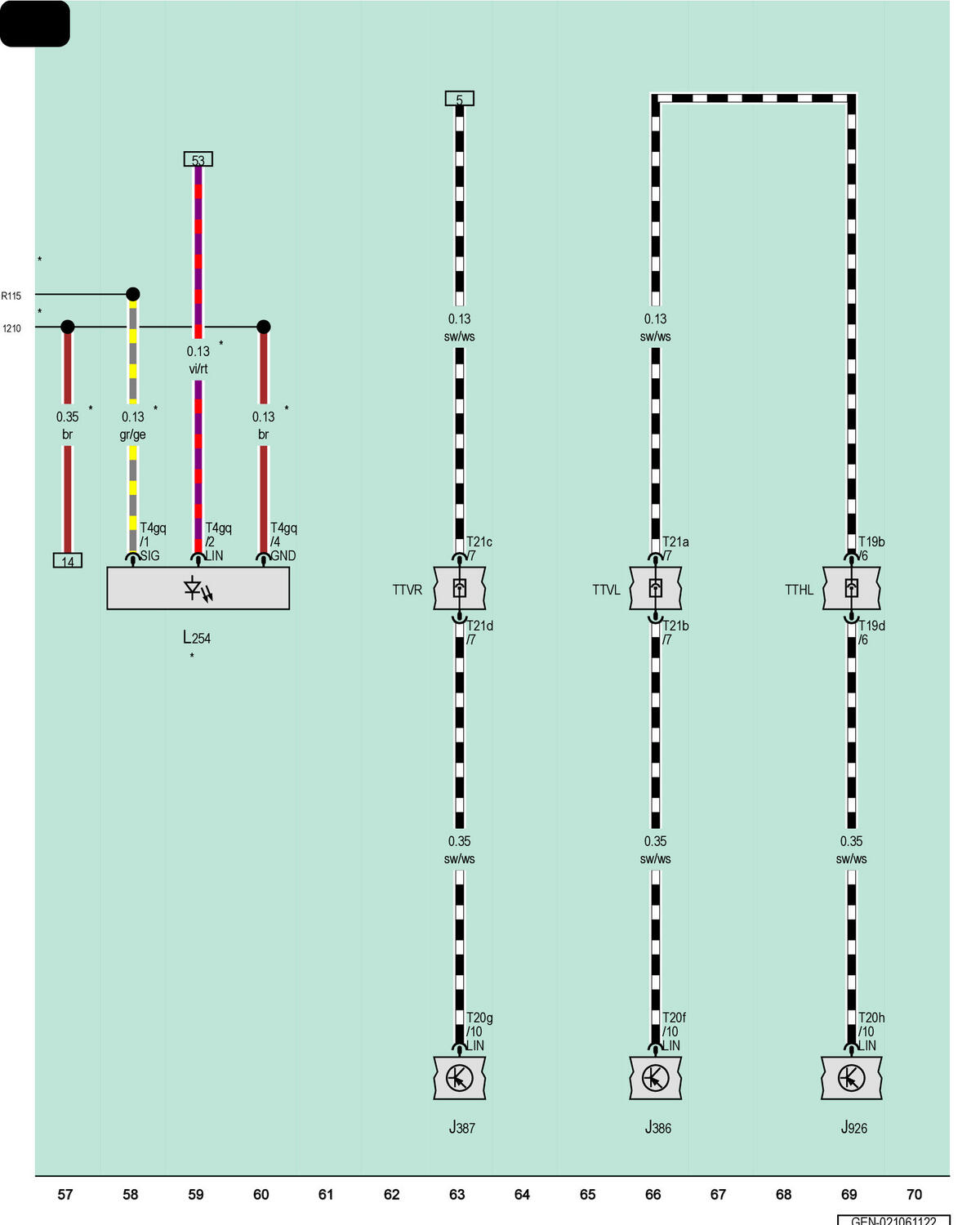

Right Rear Door Contour Illumination Lamp
J386
Driver Door Control Module
J387
Front Passenger Door Control Module
J926
Driver Side Rear Door Control Module
L254
Right Rear Door Contour Illumination Lamp
T4gq
4-Pin Connector, Brown
T19b
19-Pin Connector, Black
T19d
19-Pin Connector, Black
T20f
20-Pin Connector, White
T20g
20-Pin Connector, White
T20h
20-Pin Connector, White
T21a
21-Pin Connector, Black
T21b
21-Pin Connector, Black
T21c
21-Pin Connector, Black
T21d
21-Pin Connector, Black
TTHL
Left Rear Door Coupling Point
TTVL
Left Front Door Coupling Point
TTVR
Right Front Door Coupling Point
1210
Ground Connection (in Passenger Side Rear Door Wiring Harness)
R115
Ambient Lighting Connection (in Right Rear Door Wiring Harness)
*
For Vehicles with Ambient Lighting, Version 2
