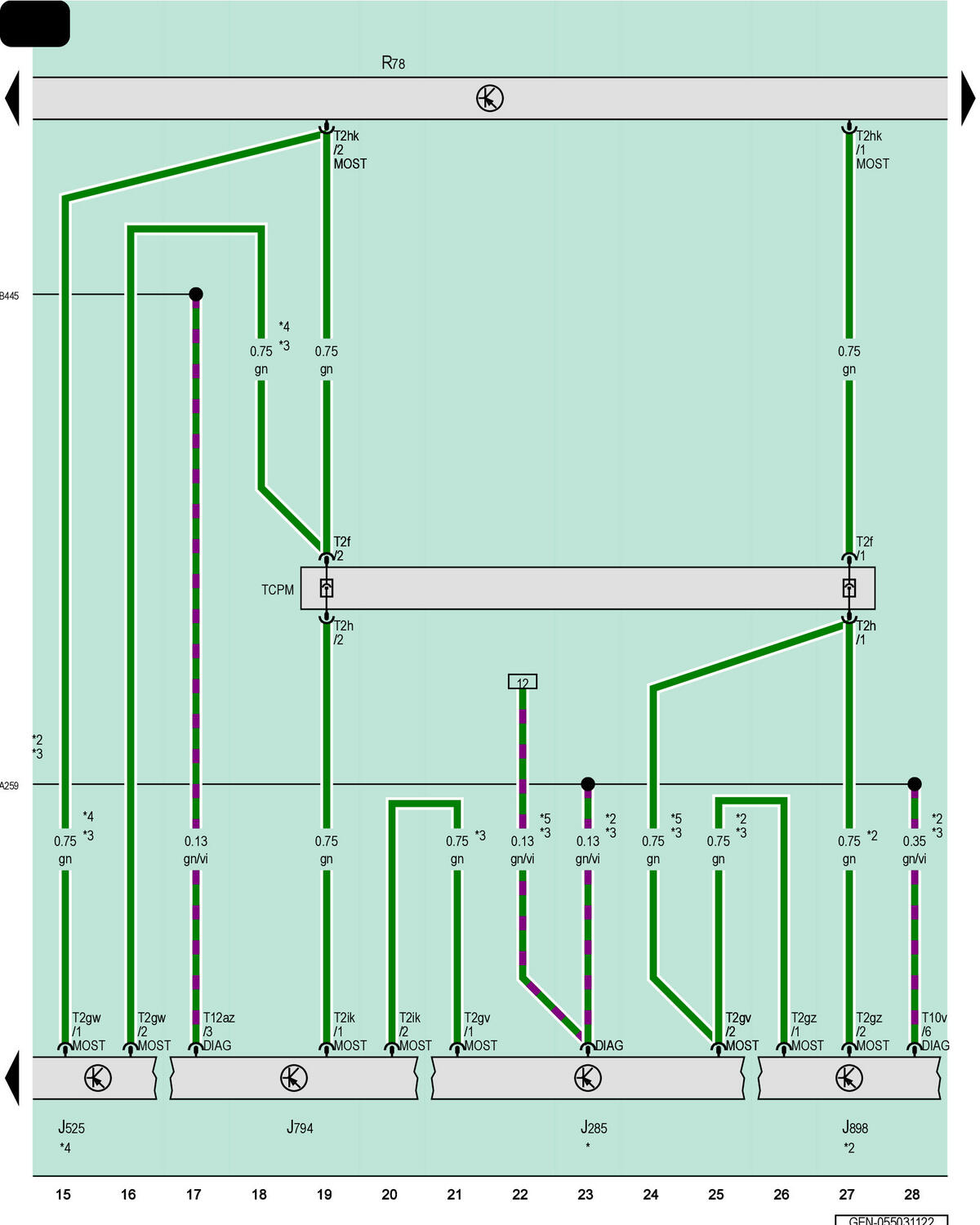

Instrument Cluster Control Module, Digital Sound System Control Module, Information Electronics Control Module 1, Windshield Projection Head Up Display Control Module, TV Tuner

Courtesy of AUDI OF AMERICA, LLC

J285

Instrument Cluster Control Module

J525

Digital Sound System Control Module

J794

Information Electronics Control Module 1

J898

Windshield Projection Head Up Display Control Module

R78

TV Tuner

T2f

2-Pin Connector, Black

T2gv

2-Pin Connector, Black

T2gw

2-Pin Connector, Black

T2gz

2-Pin Connector, Black

T2h

2-Pin Connector, Black

T2hk

2-Pin Connector, Black

T2ik

2-Pin Connector, Black

T10v

10-Pin Connector, Black

T12az

12-Pin Connector, Gray

TCPM

Coupling Point on Instrument Panel, Center

A259

Connection 3 (in Instrument Panel Wiring Harness)

B445

OBD Connection 2 (in Main Wiring Harness)

*

Refer to Applicable Wiring Diagram for Instrument Cluster

*2

For Vehicles with Windshield Projection

*3

For Vehicles with Bang & Olufsen Sound System

*4

Through June 2020

*5

For Vehicles Without Windshield Projection
