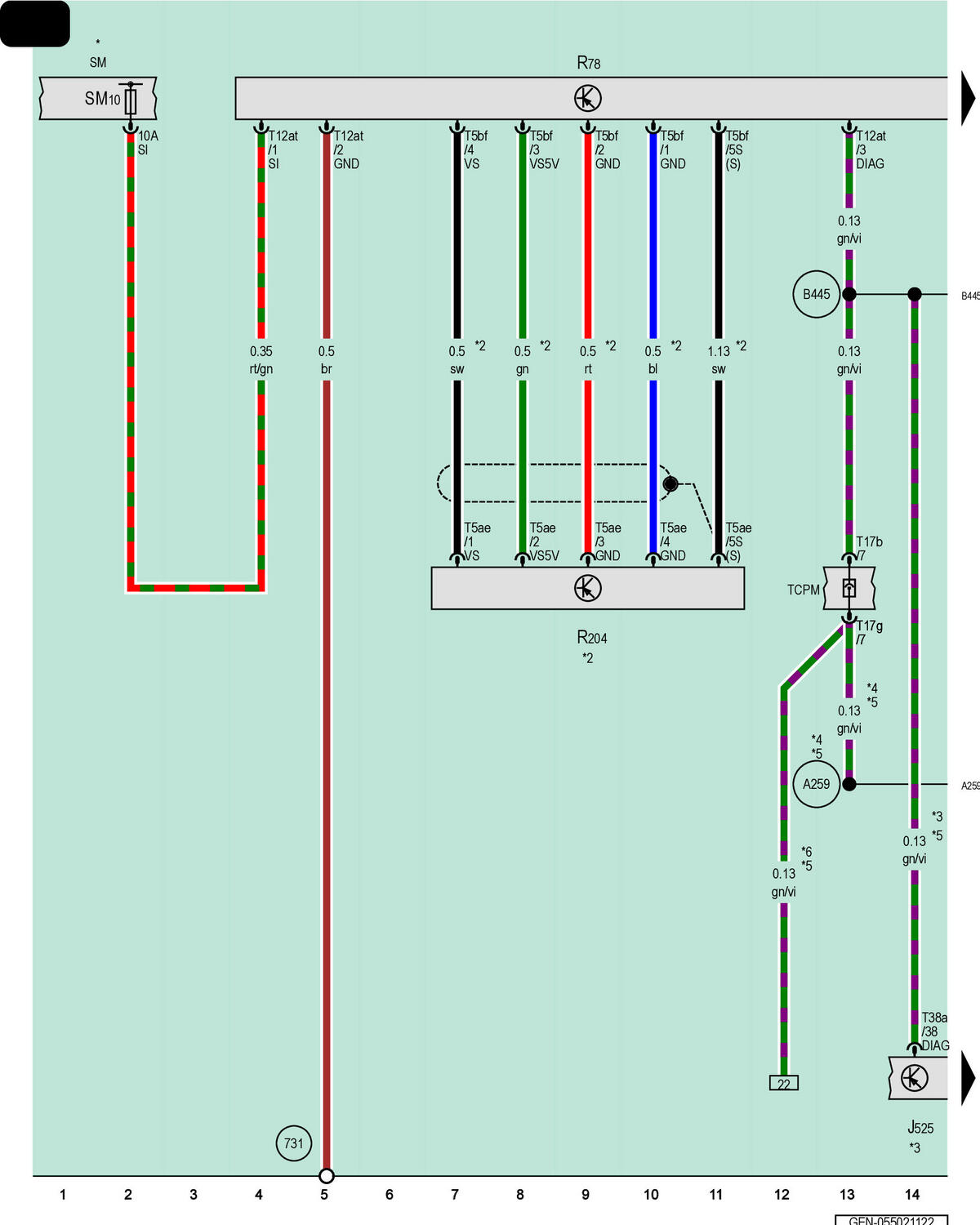

Digital Sound System Control Module, TV Tuner, TV Card Reader

Courtesy of AUDI OF AMERICA, LLC

J525

Digital Sound System Control Module

R78

TV Tuner

R204

TV Card Reader

SM

Fuse Panel M

SM10

Fuse 10 on Fuse Panel M

T5ae

5-Pin Connector, Blue

T5bf

5-Pin Connector, Blue

T12at

12-Pin Connector, Black

T17b

17-Pin Connector, Blue

T17g

17-Pin Connector, Blue

T38a

38-Pin Connector, Black

TCPM

Coupling Point on Instrument Panel, Center

731

Ground Connection 2 on Right Rear Wheel Housing

A259

Connection 3 (in Instrument Panel Wiring Harness)

B445

OBD Connection 2 (in Main Wiring Harness)

*

Refer to Applicable Wiring Diagram for Fuse Positions

*2

Optional Equipment

*3

Through June 2020

*4

For Vehicles with Windshield Projection

*5

For Vehicles with Bang & Olufsen Sound System

*6

For Vehicles Without Windshield Projection
