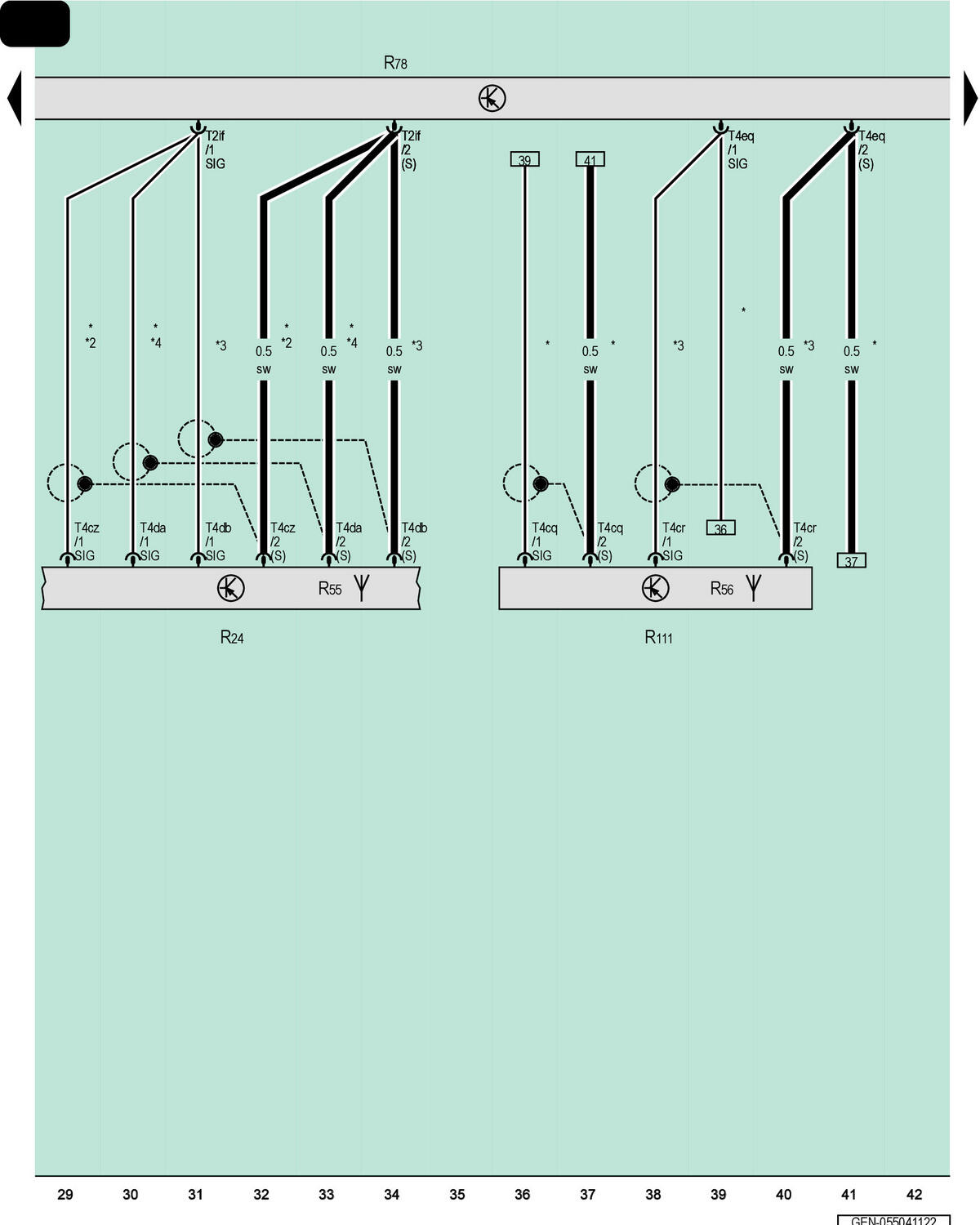

Antenna Amplifier, TV Tuner, Antenna Amplifier 2

Courtesy of AUDI OF AMERICA, LLC

R24

Antenna Amplifier

R55

TV Antenna 1

R56

TV Antenna 2

R78

TV Tuner

R111

Antenna Amplifier 2

T2if

2-Pin Connector, Brown

T4cq

4-Pin Connector, Purple

T4cr

4-Pin Connector, Blue

T4cz

4-Pin Connector, White

T4da

4-Pin Connector, Light Green

T4db

4-Pin Connector, Pink

T4eq

4-Pin Connector, Green

*

For Vehicles Without Japan Equipment

*2

For Vehicles Without Digital Radio

*3

For Vehicles with Japan Equipment

*4

For Vehicles with Digital Radio
