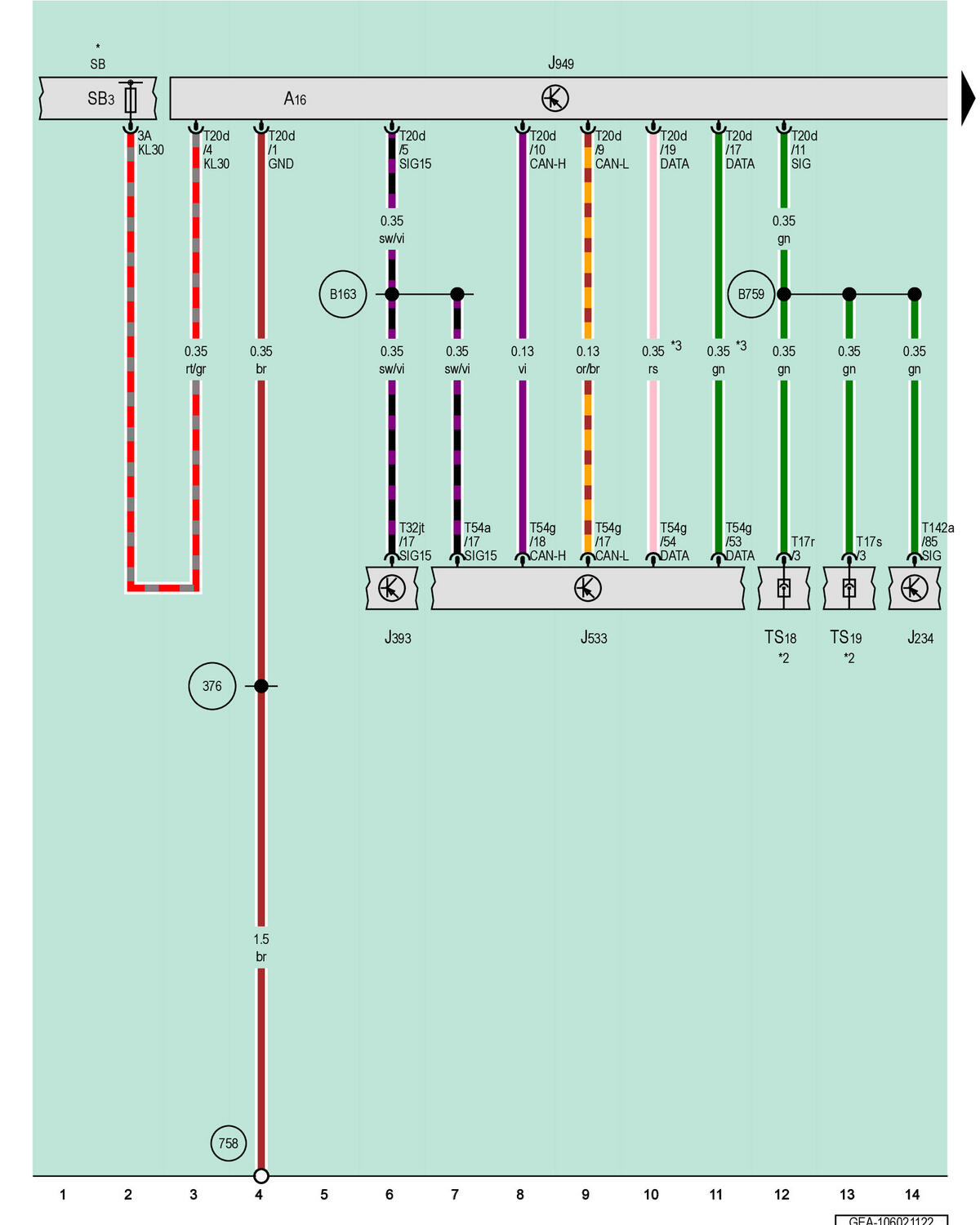

Data Bus On Board Diagnostic Interface, Control Module For Emergency Call Module And Communication Unit
A16
Telematics Emergency Battery
J234
Airbag Control Module
J393
Comfort System Central Control Module
J533
Data Bus on Board Diagnostic Interface
J949
Control Module for Emergency Call Module and Communication Unit
SB
Fuse Panel B
SB3
Fuse 3 (On Fuse Panel B)
T17r
17-Pin Connector, Red
T17s
17-Pin Connector, Red
T20d
20-Pin Connector, Black
T32jt
32-Pin Connector, Black
T54a
54-Pin Connector, Black
T54g
54-Pin Connector, Gray
T142a
142-Pin Connector, Yellow
TS18
Driver Seat Coupling Point
TS19
Front Passenger Seat Coupling Point
376
Ground Connection 11 (in Main Wiring Harness)
758
Ground Connection 3 on Center Tunnel
B163
Positive Connection 1 (15) (in Interior Wiring Harness)
B759
Crash Signal Connection (in Main Wiring Harness)
*
Refer to Applicable Wiring Diagram for Fuse Positions
*2
Refer to Applicable Seat Adjustment Wiring Diagram
*3
Ethernet Data Wire
