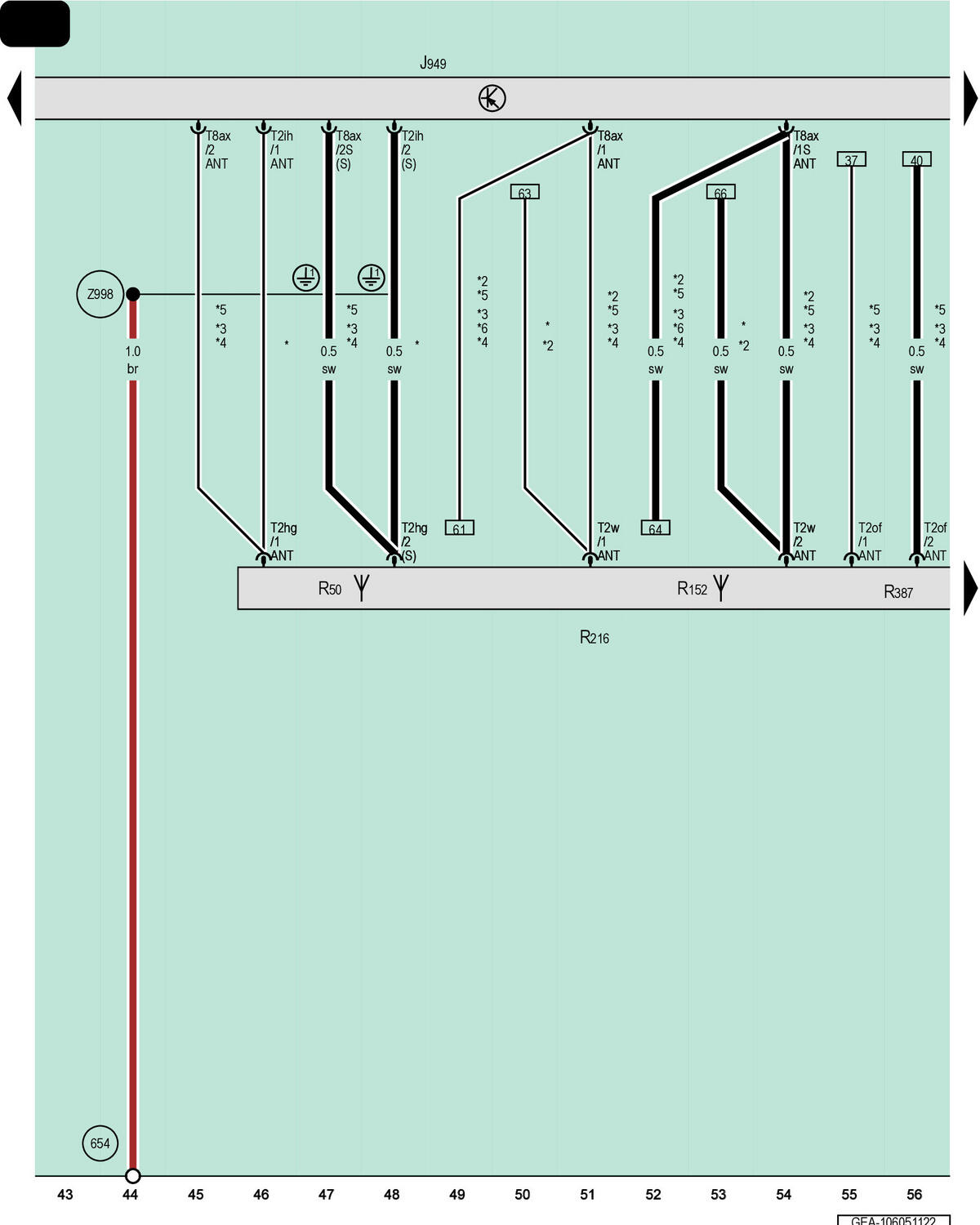

Control Module For Emergency Call Module And Communication Unit, Roof Antenna

Courtesy of AUDI OF AMERICA, LLC

J949

Control Module for Emergency Call Module and Communication Unit

R50

GPS Antenna

R152

Bluetooth Antenna

R216

Roof Antenna

R387

Antenna for External Communication with Vehicle

T2hg

2-Pin Connector, Blue

T2ih

2-Pin Connector, Pink

T2of

2-Pin Connector, White

T2w

2-Pin Connector, Black

T8ax

8-Pin Connector, Light Blue

654

Ground Connection on Right D-Pillar

Z998

Cable Shield

For Vehicles Without External Vehicle Communication

For Vehicles with Cell Phone/Telephone

For Vehicles with China Equipment

From June 2021

For Vehicles with External Vehicle Communication

Sportback
