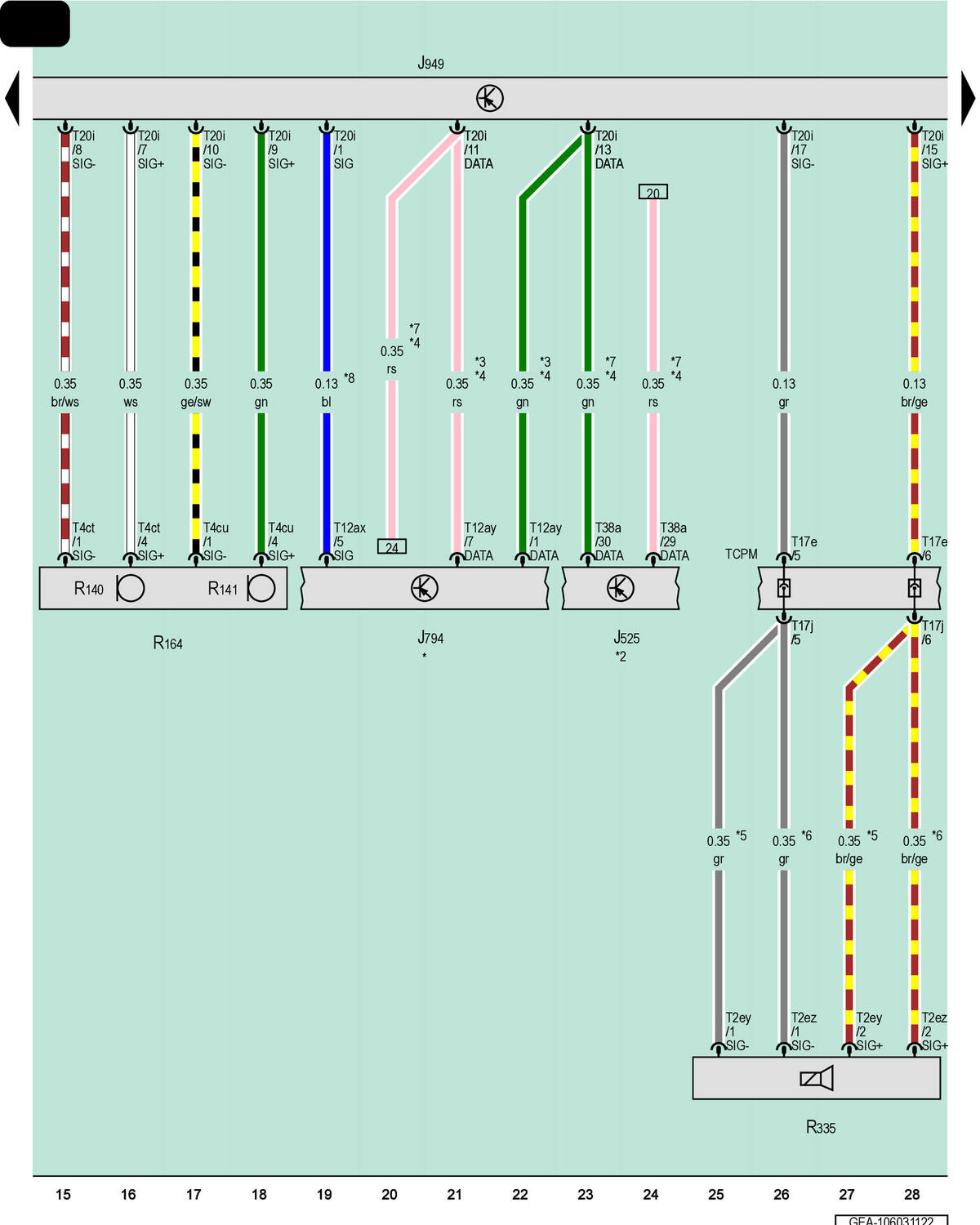

Control Module For Emergency Call Module And Communication Unit, Microphone Unit In Front Roof Module, Emergency Call Module Speaker

Courtesy of AUDI OF AMERICA, LLC

J525

Digital Sound System Control Module

J794

Information Electronics Control Module 1

J949

Control Module for Emergency Call Module and Communication Unit

R140

Left Front Microphone

R141

Right Front Microphone

R164

Microphone Unit in Front Roof Module

R335

Emergency Call Module Speaker

T2ey

2-Pin Connector, White

T2ez

2-Pin Connector, Black

T4ct

4-Pin Connector, Gray

T4cu

4-Pin Connector, Blue

T12ax

12-Pin Connector, Blue

T12ay

12-Pin Connector, Green

T17e

17-Pin Connector, Black

T17j

17-Pin Connector, Black

T20i

20-Pin Connector, Naturally Cloudy

T38a

38-Pin Connector, Black

TCPM

Coupling Point on Instrument Panel, Center

*

Refer to Applicable MMI (Information Electronics) Wiring Diagram

*2

Refer to Applicable Sound System Wiring Diagram

*3

For Vehicles Without an Amplifier

*4

Audio Bus Data Bus Wire

*5

Not for Vehicles with Russia Equipment

*6

For Vehicles with Russia Equipment

*7

For Vehicles with an Amplifier

*8

Depending on Equipment
