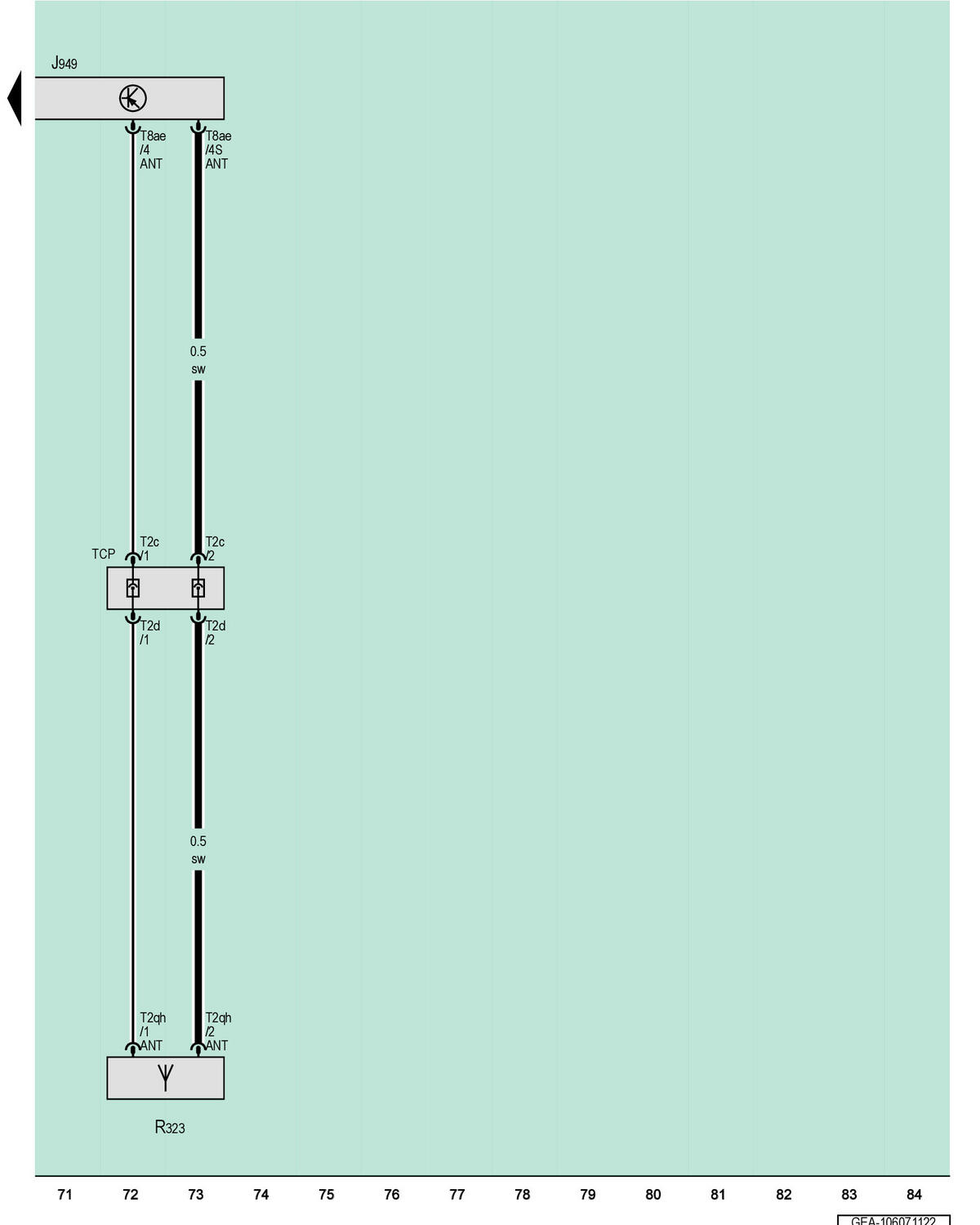

Control Module For Emergency Call Module And Communication Unit, Emergency Call Module Antenna 3

GWWGEA-106071122Courtesy of AUDI OF AMERICA, LLC

J949

Control Module for Emergency Call Module and Communication Unit

R323

Emergency Call Module Antenna 3

T2c

2-Pin Connector, Purple

T2d

2-Pin Connector, Purple

T2qh

2-Pin Connector, Purple

T8ae

8-Pin Connector, Black

TCP

Coupling Point on Instrument Panel
