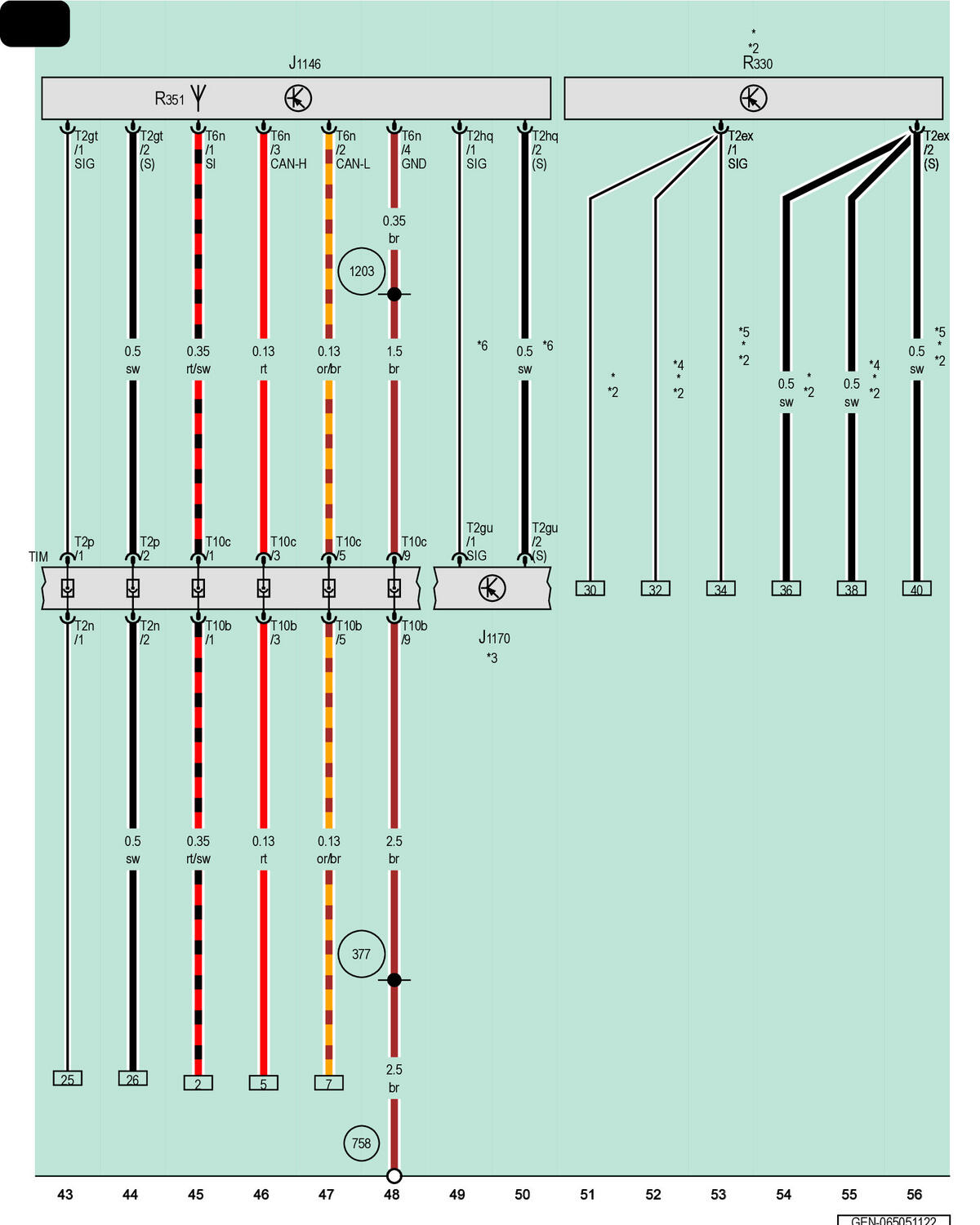

Mobile Device Charger 1, Near Field Communication Control Module 2, LTE Antenna 3
J1146
Mobile Device Charger 1
J1170
Near Field Communication Control Module 2
R330
LTE Antenna 3, Behind the Right Rear Bumper
R351
Near Field Communication Antenna 2
T2ex
2-Pin Connector, Purple
T2gt
2-Pin Connector, Purple
T2gu
2-Pin Connector, Black
T2hq
2-Pin Connector, Black
T2n
2-Pin Connector, Blue
T2p
2-Pin Connector, Blue
T6n
6-Pin Connector, Black
T10b
10-Pin Connector, Black
T10c
10-Pin Connector, Black
TIM
Coupling Point in Interior, Center
377
Ground Connection 12 (in Main Wiring Harness)
758
Ground Connection 3 on Center Tunnel
1203
Ground Connection (in Center Console Wiring Harness)
*
For Vehicles with Mobile Online Services
*2
For Vehicles with Emergency Call Module
*3
Refer to the Applicable Access/Start Authorization System Wiring Diagram
*4
For USA Only
*5
For Vehicles with China Equipment
*6
For Vehicles with Access/Start Authorization System
