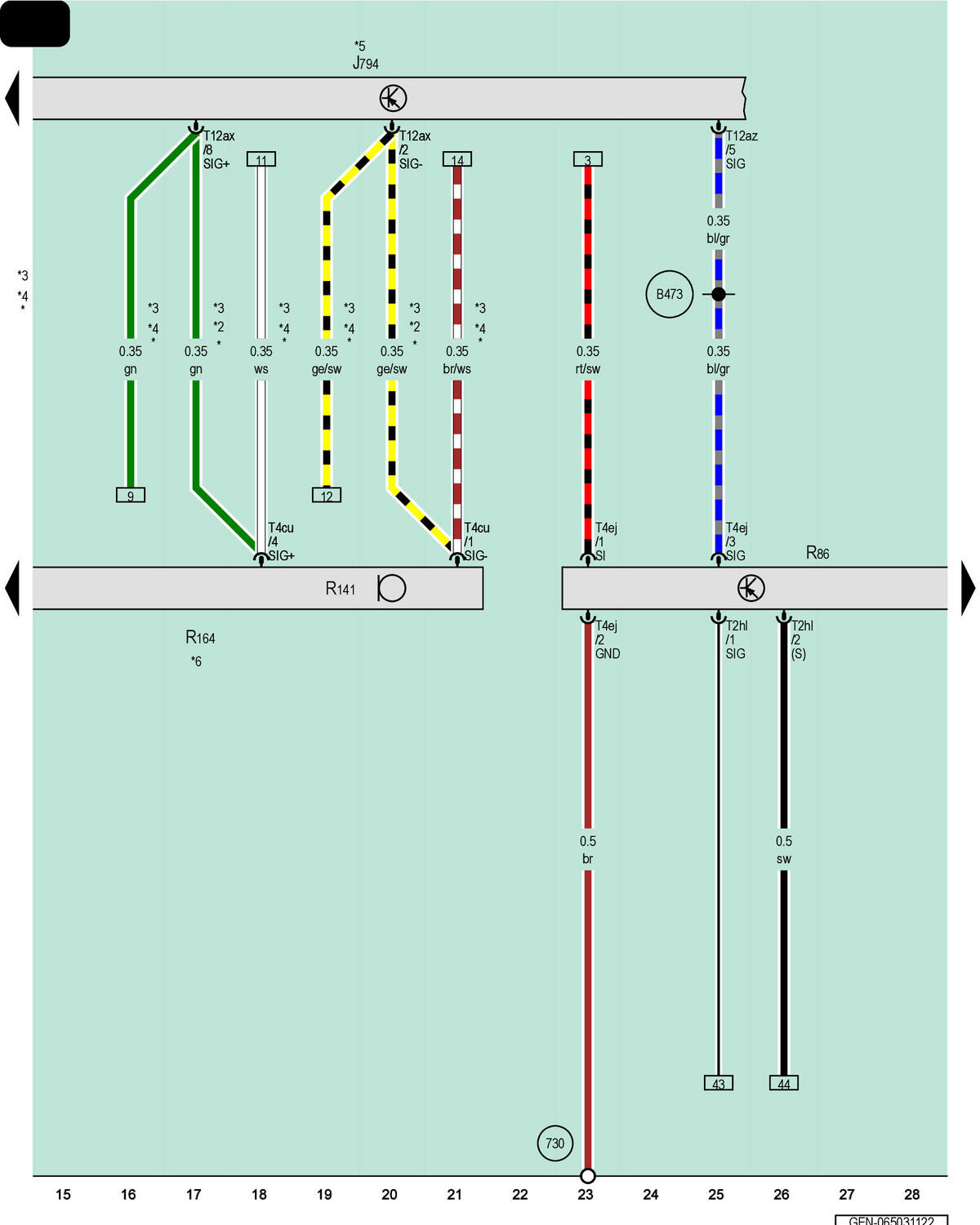

Information Electronics Control Module 1, Cellular Telephone Amplifier, Microphone Unit In Front Roof Module
J794
Information Electronics Control Module 1
R86
Cellular Telephone Amplifier
R141
Right Front Microphone
R164
Microphone Unit in Front Roof Module
T2hl
2-Pin Connector, Black
T4cu
4-Pin Connector, Blue
T4ej
4-Pin Connector, Black
T12ax
12-Pin Connector, Blue
T12az
12-Pin Connector, Gray
730
Ground Connection 1 on Right Rear Wheel Housing
B473
Connection 9 (in Main Wiring Harness)
*
For Vehicles Without Emergency Call Module
*2
For LHD Vehicles
*3
Through August 2020
*4
For RHD Vehicles
*5
Refer to Applicable MMI (Information Electronics) Wiring Diagram
*6
Refer to Applicable Emergency Call Module Wiring Diagram
