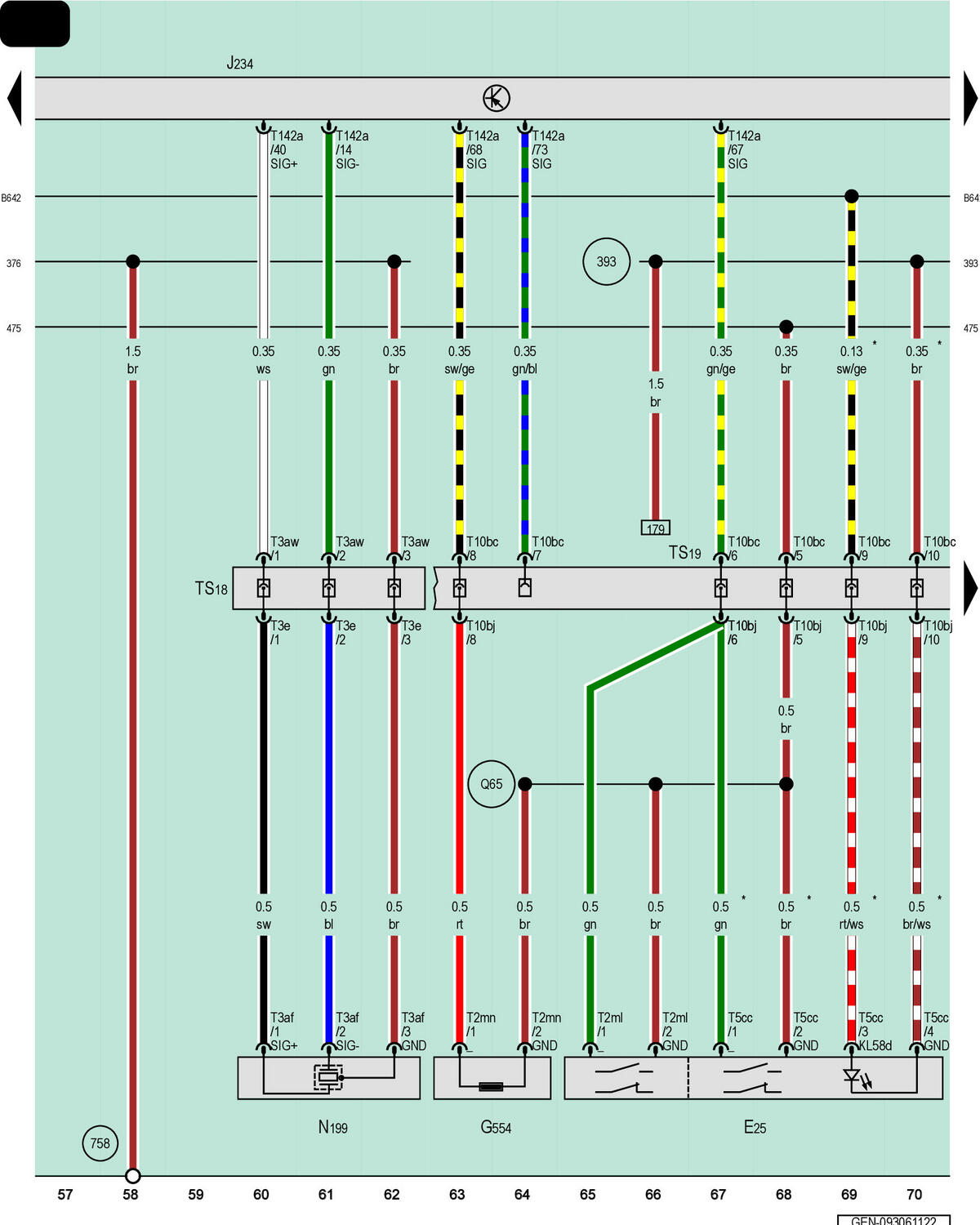

Front Passenger Seat Belt Switch, Front Passenger Seat Position Sensor, Airbag Control Module, Driver Thorax Airbag Igniter
E25
Front Passenger Seat Belt Switch
G554
Front Passenger Seat Position Sensor
J234
Airbag Control Module
N199
Driver Thorax Airbag Igniter
T2ml
2-Pin Connector, Black
T2mn
2-Pin Connector
T3af
3-Pin Connector, Yellow
T3aw
3-Pin Connector, Yellow
T3e
3-Pin Connector, Yellow
T5cc
5-Pin Connector, Black
T10bc
10-Pin Connector, Black
T10bj
10-Pin Connector, Black
T142a
142-Pin Connector, Yellow
TS18
Driver Seat Coupling Point
TS19
Front Passenger Seat Coupling Point
376
Ground Connection 11 (in Main Wiring Harness)
393
Ground Connection 28 (in Main Wiring Harness)
475
Airbag Ground Connection (in Main Wiring Harness)
758
Ground Connection 3 on Center Tunnel
B642
Positive Connection (58) (in Main Wiring Harness)
Q65
Connection (in Seat Belt Warning System Wiring Harness)
*
Optional Equipment
