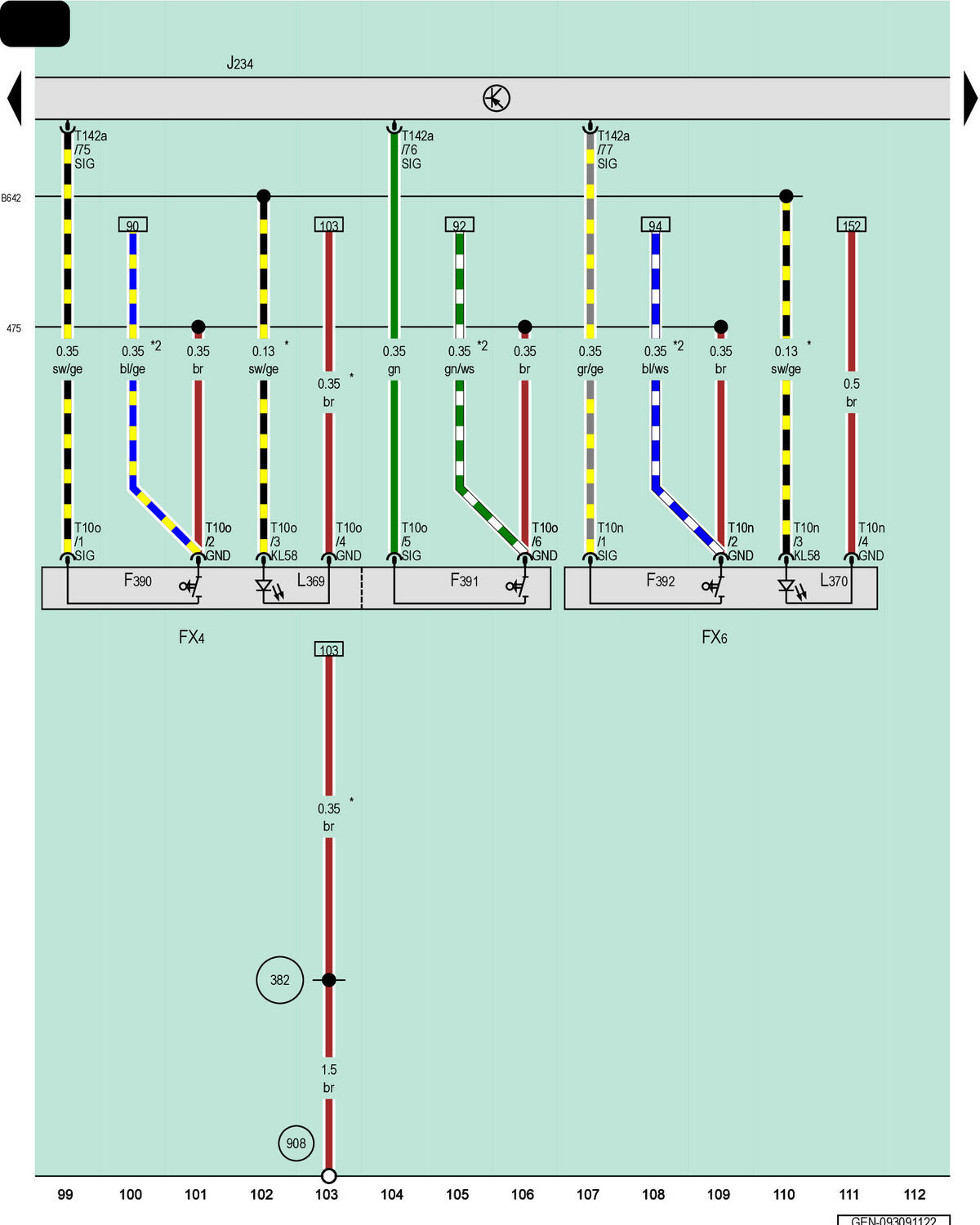

Dual Seat Belt Latch, Passenger Side Second Row Seat Belt, Airbag Control Module
FX4
Dual Seat Belt Latch
FX6
Passenger Side Second Row Seat Belt
F390
Driver Side Second Row Seat Belt Switch
F391
Center Second Row Seat Belt Switch
F392
Passenger Side Second Row Seat Belt Switch
J234
Airbag Control Module
L369
Rear Driver Side Seat Belt Latch Lamp
L370
Passenger Side Rear Seat Belt Latch Lamp
T10n
10-Pin Connector, Black
T10o
10-Pin Connector, Black
T142a
142-Pin Connector, Yellow
382
Ground Connection 17 (in Main Wiring Harness)
475
Airbag Ground Connection (in Main Wiring Harness)
908
Ground Connection 2 on Left Rear Wheel Housing
B642
Positive Connection (58) (in Main Wiring Harness)
*
Optional Equipment
*2
For Vehicles with a Seat Occupant Detection System
