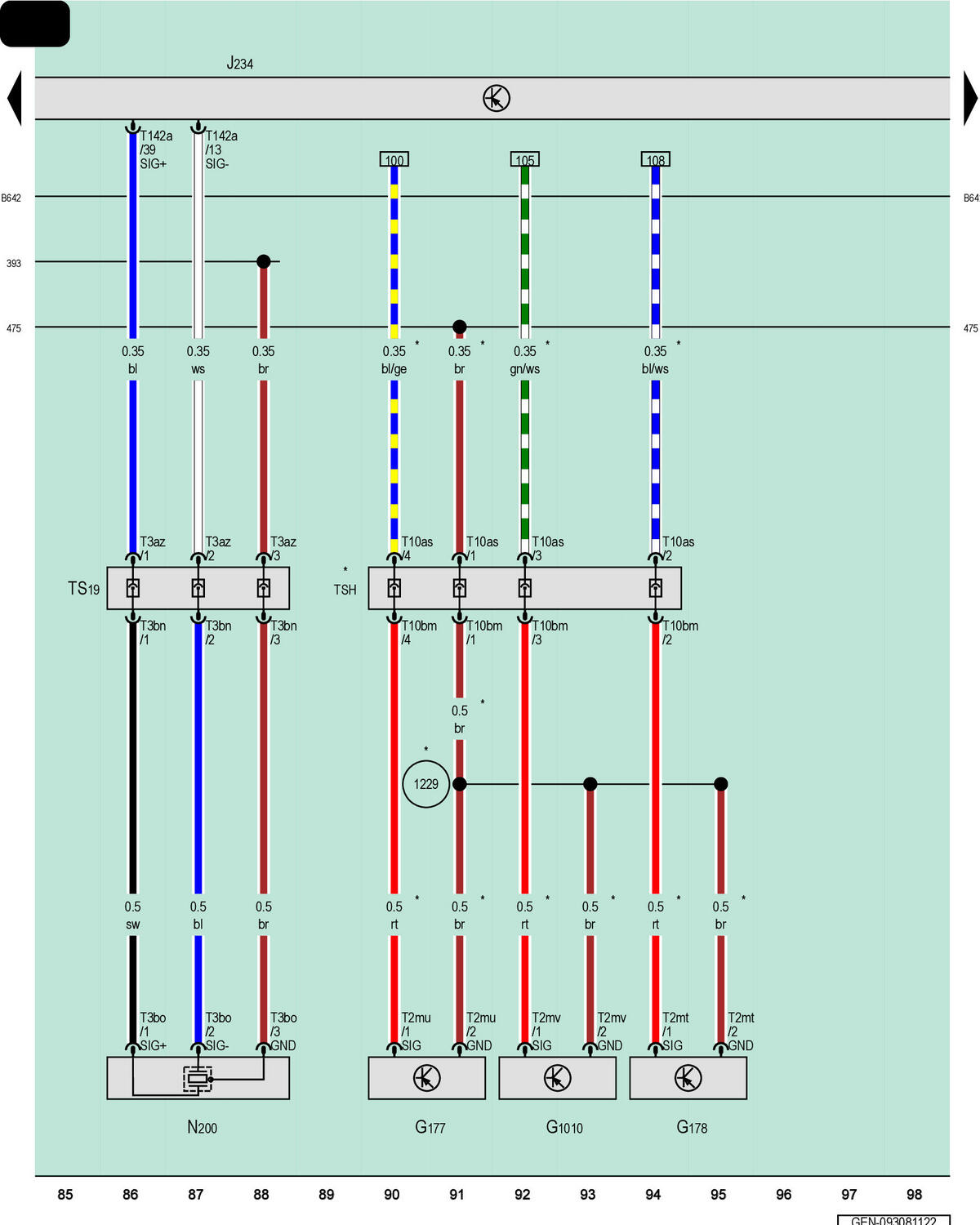

Driver Side Rear Seat Occupant Detection Sensor, Passenger Side Rear Seat Occupant Detection Sensor, Rear Center Seat Occupant Detection Sensor, Airbag Control Module, Front Passenger Thorax Airbag Igniter
G177
Driver Side Rear Seat Occupant Detection Sensor
G178
Passenger Side Rear Seat Occupant Detection Sensor
G1010
Rear Center Seat Occupant Detection Sensor
J234
Airbag Control Module
N200
Front Passenger Thorax Airbag Igniter
T2mt
2-Pin Connector, White
T2mu
2-Pin Connector, White
T2mv
2-Pin Connector, White
T3az
3-Pin Connector, Yellow
T3bn
3-Pin Connector, Yellow
T3bo
3-Pin Connector, Yellow
T10as
10-Pin Connector, Black
T10bm
10-Pin Connector, Black
T142a
142-Pin Connector, Yellow
TS19
Front Passenger Seat Coupling Point
TSH
Rear Seat Coupling Point
393
Ground Connection 28 (in Main Wiring Harness)
475
Airbag Ground Connection (in Main Wiring Harness)
1229
Ground Connection 3 (in Rear Seat Adjustment Wiring Harness)
B642
Positive Connection (58) (in Main Wiring Harness)
*
For Vehicles with a Seat Occupant Detection System
