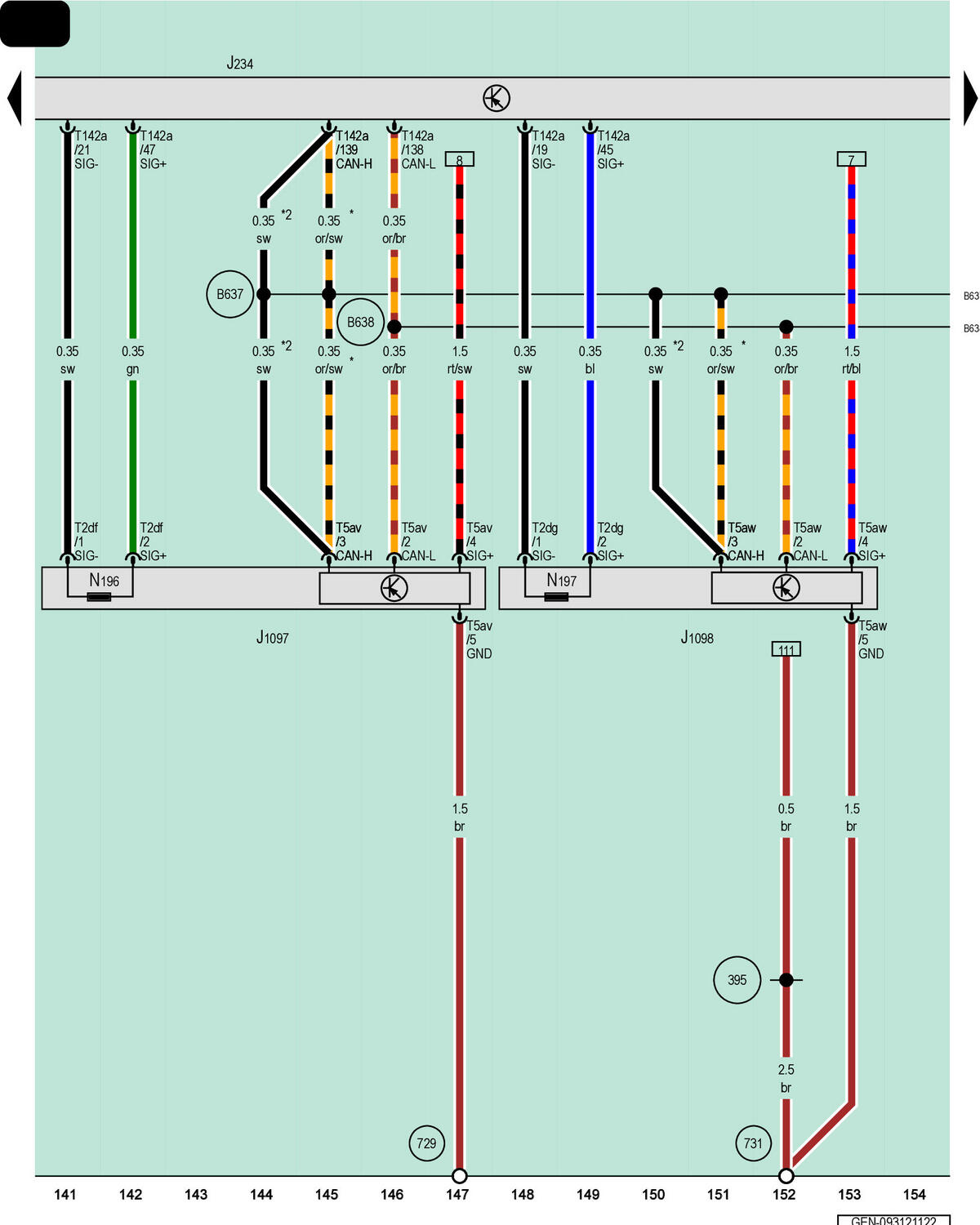

Airbag Control Module, Left Rear Seat Belt TENSIONER Control Module, Right Rear Seat Belt TENSIONER Control Module

Courtesy of AUDI OF AMERICA, LLC

J234

Airbag Control Module

J1097

Left Rear Seat Belt Tensioner Control Module

J1098

Right Rear Seat Belt Tensioner Control Module

N196

Driver Side Rear Seat Belt Tensioner Igniter

N197

Passenger Side Rear Seat Belt Tensioner Igniter

T2df

2-Pin Connector, Yellow

T2dg

2-Pin Connector, Yellow

T5av

5-Pin Connector, Naturally Cloudy

T5aw

5-Pin Connector, Naturally Cloudy

T142a

142-Pin Connector, Yellow

395

Ground Connection 30 (in Main Wiring Harness)

729

Ground Connection on Left Rear Wheel Housing

731

Ground Connection 2 on Right Rear Wheel Housing

B637

Airbag Connection 1 (in Main Wiring Harness)

B638

Airbag Connection 2 (in Main Wiring Harness)

Omitted as a Running Change

Running Change
