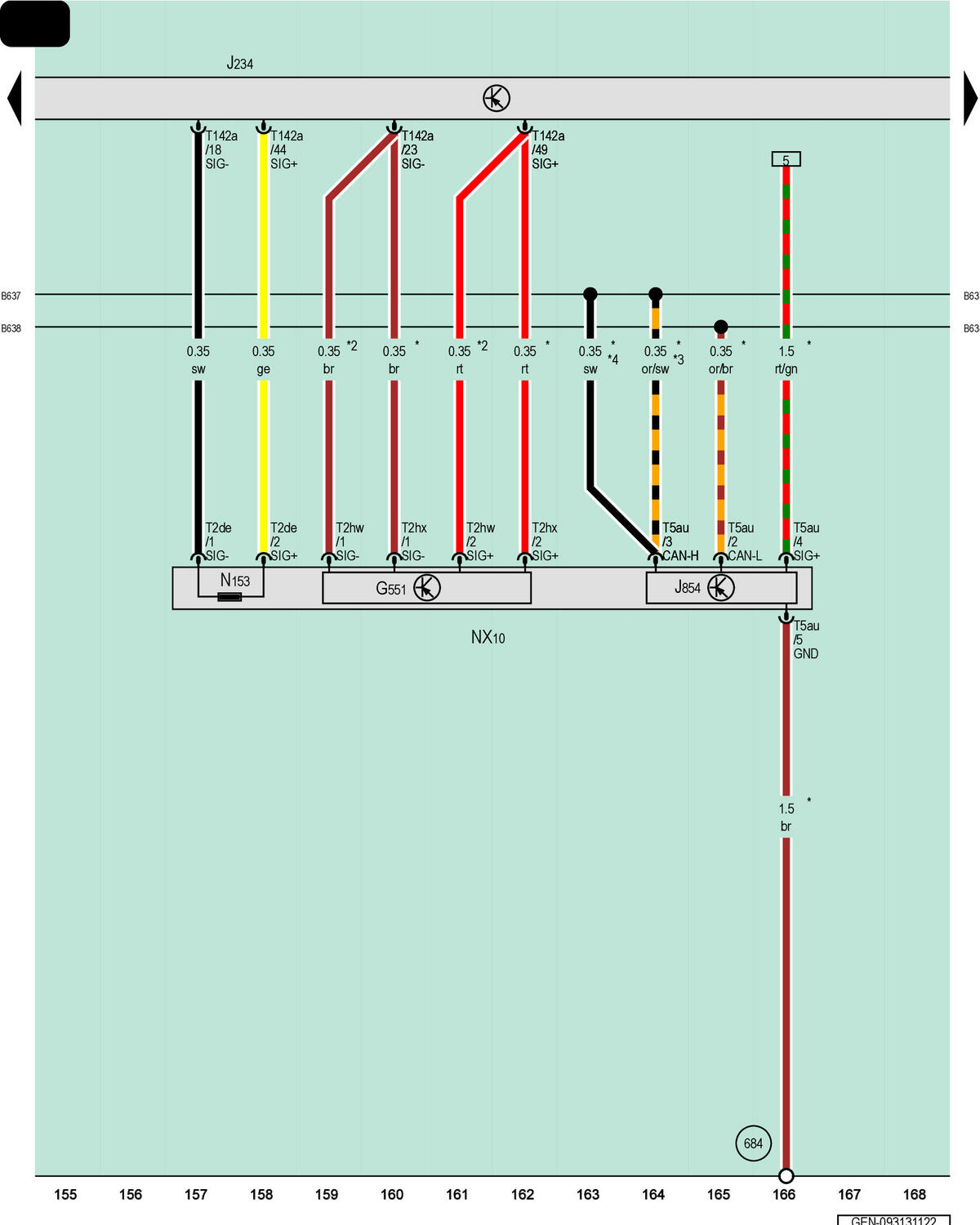

Airbag Control Module, Left Front Seat Belt TENSIONER Control Module, Left Front Seat Belt, Driver Seat Belt TENSIONER Igniter 1

Courtesy of AUDI OF AMERICA, LLC

G551

Driver Belt Force Limiter

J234

Airbag Control Module

J854

Left Front Seat Belt Tensioner Control Module

NX10

Left Front Seat Belt

N153

Driver Seat Belt Tensioner Igniter 1

T2de

2-Pin Connector, Yellow

T2hw

2-Pin Connector, Yellow

T2hx

2-Pin Connector, Yellow

T5au

5-Pin Connector, Naturally Cloudy

T142a

142-Pin Connector, Yellow

684

Ground Connection on Left Front Side Member

B637

Airbag Connection 1 (in Main Wiring Harness)

B638

Airbag Connection 2 (in Main Wiring Harness)

*

For Vehicles with Advanced Safety Systems

*2

For Vehicles without Advanced Safety Systems

*3

Omitted as a Running Change

*4

Running Change
