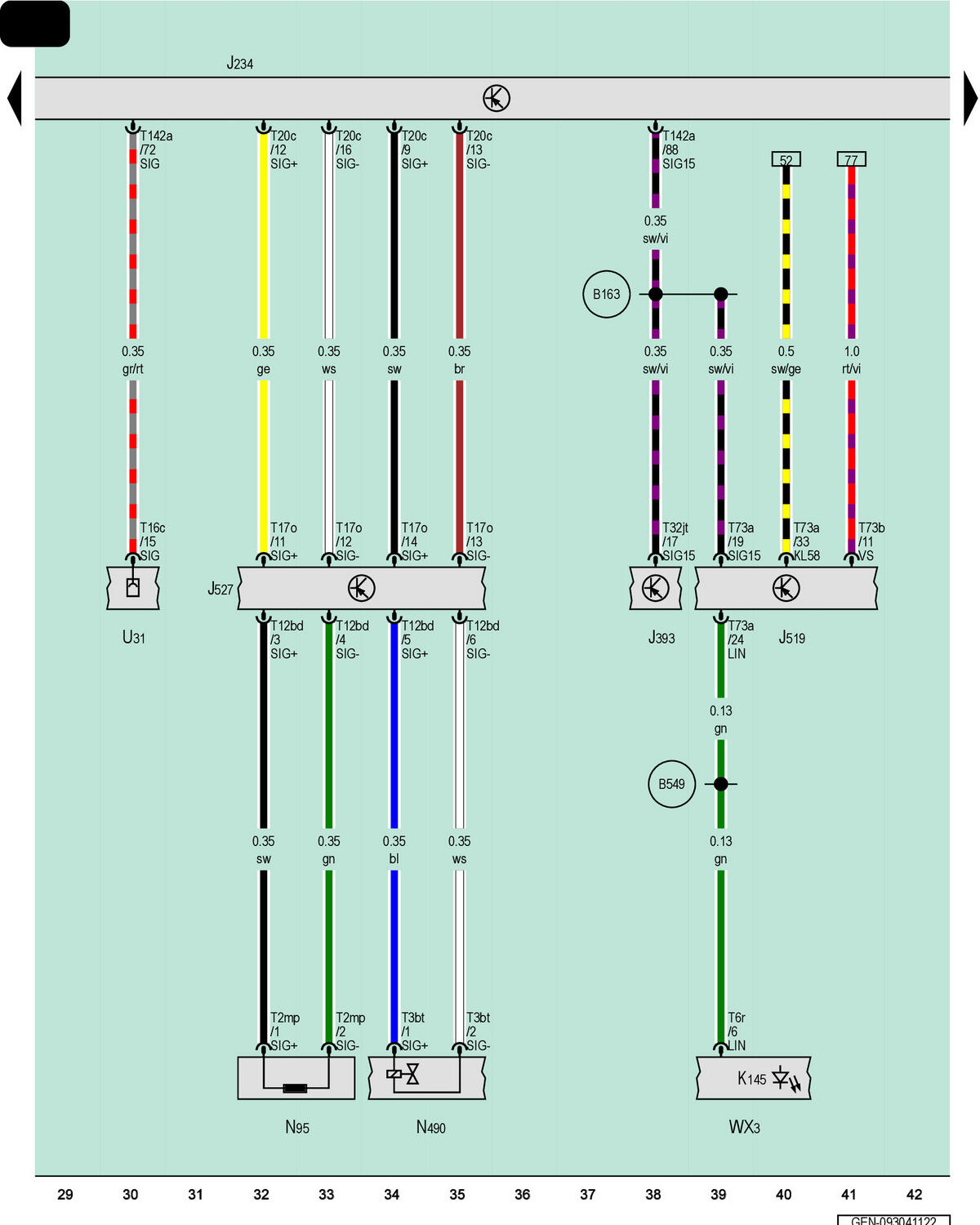

Airbag Control Module, Comfort System Central Control Module, Vehicle Electrical System Control Module, Steering Column Electronics Control Module, Driver Airbag Igniter, Driver Airbag Release Valve Igniter, Diagnostic Connection, Front Roof Module

Courtesy of AUDI OF AMERICA, LLC

J234

Airbag Control Module

J393

Comfort System Central Control Module

J519

Vehicle Electrical System Control Module

J527

Steering Column Electronics Control Module

K145

Front Passenger Airbag -Disabled- Indicator Lamp

N95

Driver Airbag Igniter

N490

Driver Airbag Release Valve Igniter

T2mp

2-Pin Connector, Black

T3bt

3-Pin Connector, Brown

T6r

6-Pin Connector, Black

T12bd

12-Pin Connector, Yellow

T16c

16-Pin Connector, Black

T17o

17-Pin Connector, Yellow

T20c

20-Pin Connector, Yellow

T32jt

32-Pin Connector, Black

T73a

73-Pin Connector, Black

T73b

73-Pin Connector, Black

T142a

142-Pin Connector, Yellow

U31

Diagnostic Connection

WX3

Front Roof Module

B163

Positive Connection 1 (15) (in Interior Wiring Harness)

B549

LIN Bus Connection 2 (in Main Wiring Harness)
