Engine/Motor Control Module J623, Removing And Installing: Removing

If the Engine/Motor Control Module -J623- is replaced, perform the test plan for replacing the control module.

-- Perform the "Control Module, Replacing" function using the Vehicle Diagnostic Tester . Refer to Diagnostic Entries .

Continuation

-- Remove the driver side instrument panel cover. Refer to DRIVER SIDE INSTRUMENT PANEL COVER, REMOVING AND INSTALLING .

-- Remove the A-pillar lower trim panel. Refer to A-PILLAR LOWER TRIM PANEL, REMOVING AND INSTALLING .

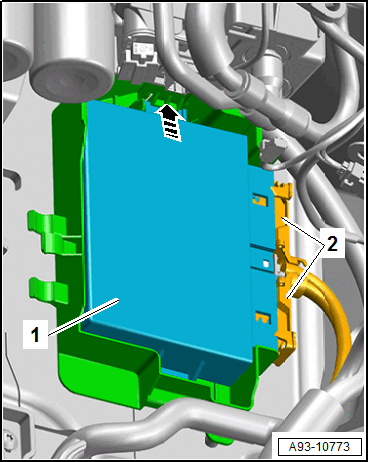

-- Release the retainer -arrow- and remove the Engine/Motor Control Module -J623- -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connectors -2-.
