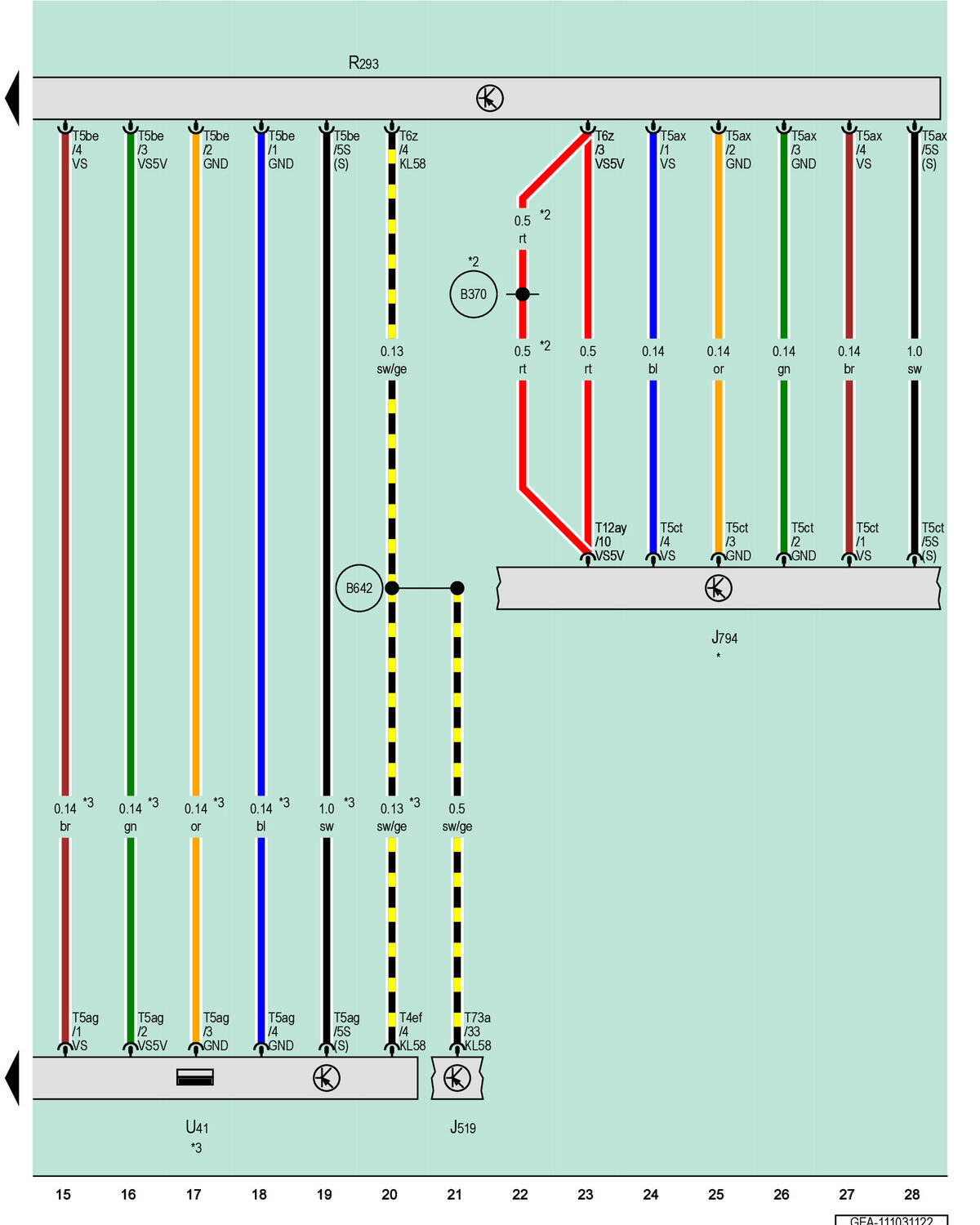

Information Electronics Control Module 1, USB Distributor, USB Connection 1
J519
Vehicle Electrical System Control Module
J794
Information Electronics Control Module 1
R293
USB Distributor
T4ef
4-Pin Connector, Red
T5ag
5-Pin Connector, Blue
T5ax
5-Pin Connector, Green
T5be
5-Pin Connector, Brown
T5ct
5-Pin Connector, Brown
T6z
6-Pin Connector, Black
T12ay
12-Pin Connector, Green
T73a
73-Pin Connector, Black
U41
USB Connection 1
B370
Connection 2 (5V) (in Main Wiring Harness)
B642
Positive Connection (58) (in Main Wiring Harness)
*
Refer to Applicable MMI (Information Electronics) Wiring Diagram
*2
For Vehicles with Electrical Interface for External Usage
*3
For Vehicles with External Audio Source Connection - Audi Music Interface
