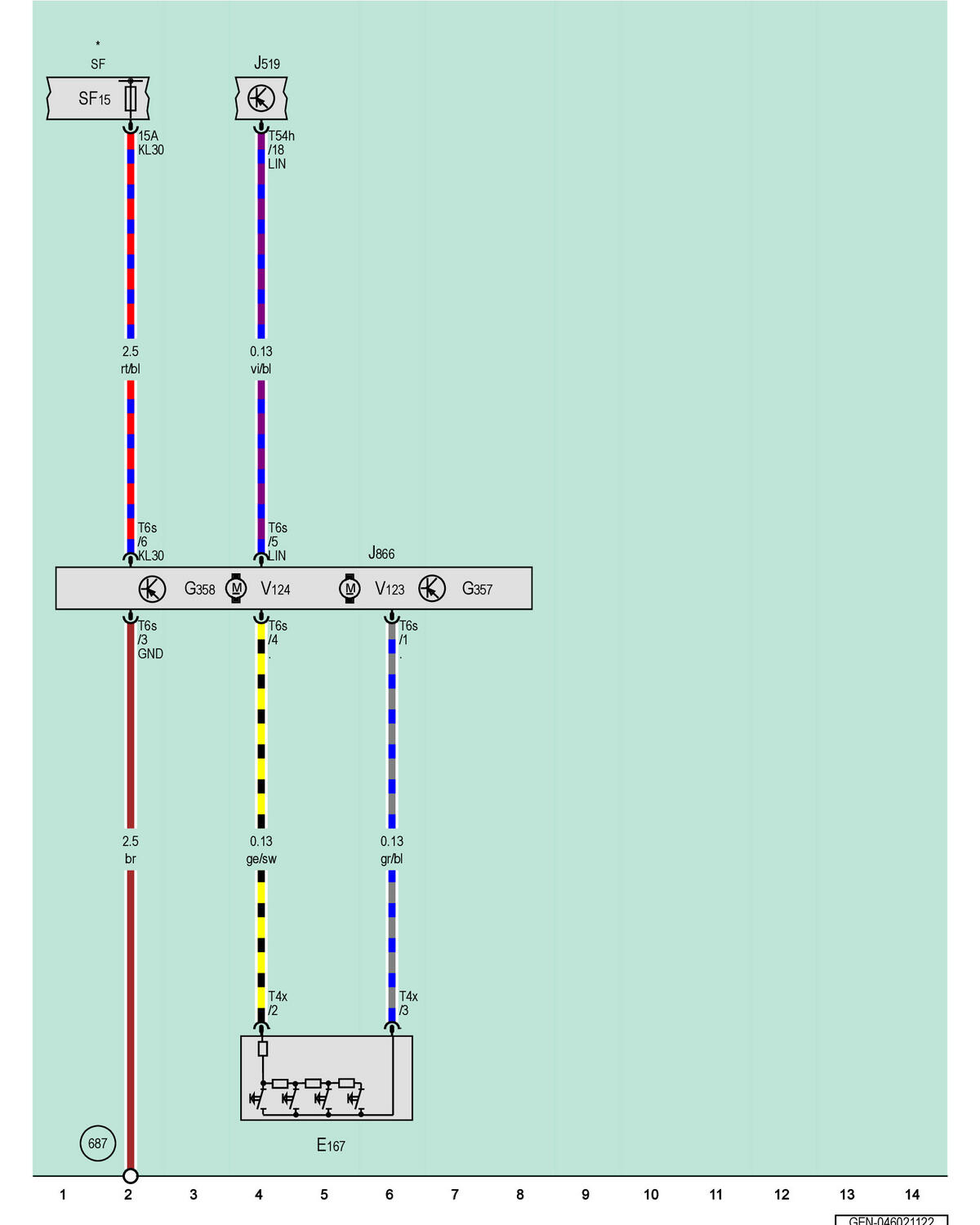

Steering Column Adjustment Switch, Vehicle Electrical System Control Module, Power Adjustable Steering Column Control Module

Courtesy of AUDI OF AMERICA, LLC

E167

Steering Column Adjustment Switch

G357

Steering Column Vertical Adjustment Sensor

G358

Steering Column Axial Adjustment Sensor

J519

Vehicle Electrical System Control Module

J866

Power Adjustable Steering Column Control Module

SF

Fuse Panel F

SF15

Fuse 15 (On Fuse Panel F)

T4x

4-Pin Connector, Brown

T6s

6-Pin Connector, Brown

T54h

54-Pin Connector, Black

V123

Steering Column Vertical Adjustment Motor

V124

Steering Column Forward/Back Adjustment Motor

687

Ground Connection 1 on Center Tunnel

*

Refer to Applicable Wiring Diagram for Fuse Positions
