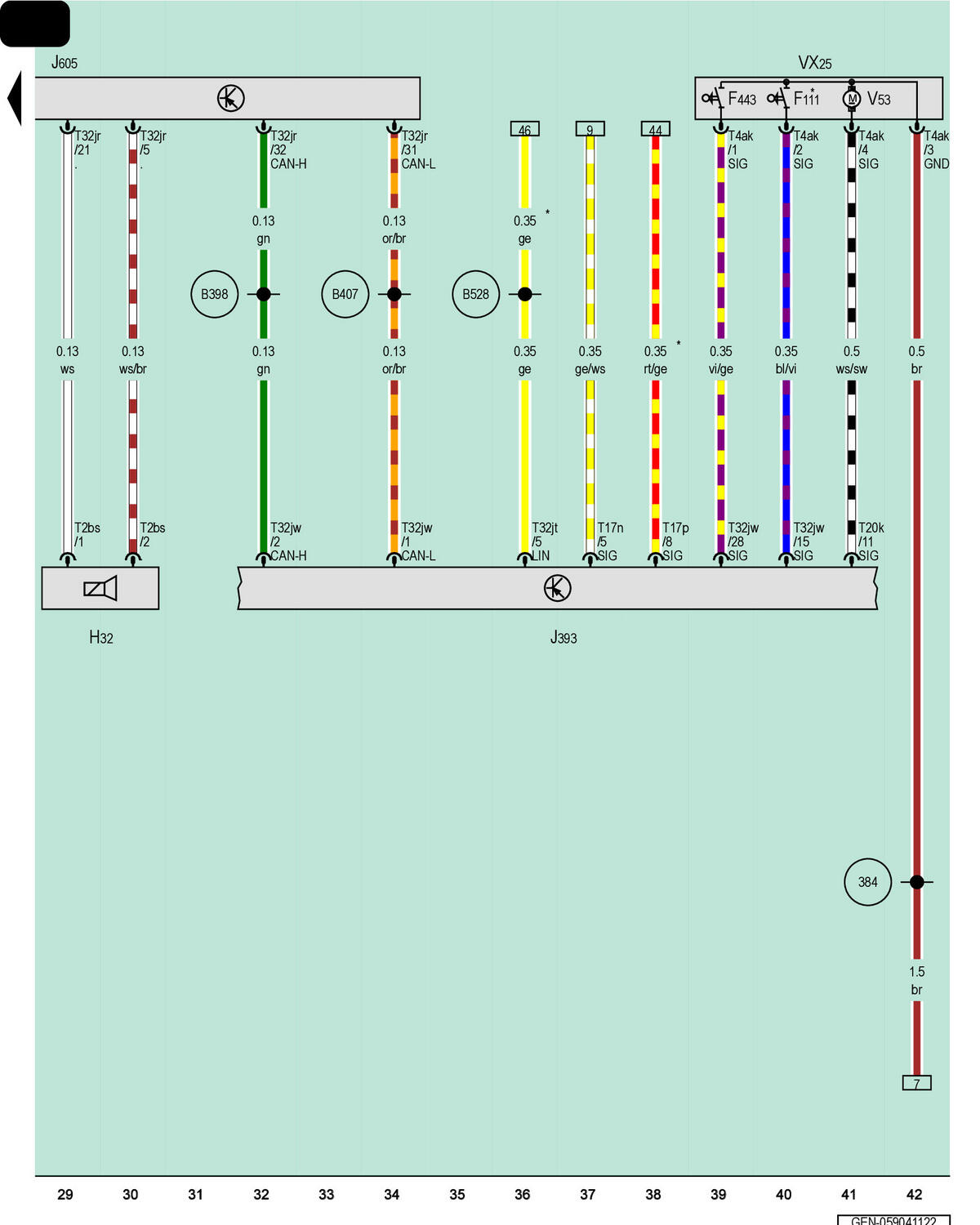

Rear Lid Warning Buzzer, Comfort System Central Control Module, Rear Lid Control Module, Rear Lid Lock Unit

Courtesy of AUDI OF AMERICA, LLC

F111

Rear Lid Contact Switch

F443

Lock Pawl Contact Switch

H32

Rear Lid Warning Buzzer

J393

Comfort System Central Control Module

J605

Rear Lid Control Module

T2bs

2-Pin Connector, Black

T4ak

4-Pin Connector, Black

T17n

17-Pin Connector, Brown

T17p

17-Pin Connector, Black

T20k

20-Pin Connector, Black

T32jr

32-Pin Connector, Black

T32jt

32-Pin Connector, Black

T32jw

32-Pin Connector, Blue

VX25

Rear Lid Lock Unit

V53

Rear Lid Central Locking System Motor

384

Ground Connection 19 (in Main Wiring Harness)

B398

Comfort System CAN Bus High Connection 2 (in Main Wiring Harness)

B407

Comfort System CAN Bus Low Connection 2 (in Main Wiring Harness)

B528

LIN Bus Connection 1 (in Main Wiring Harness)

*

For Vehicles with Access/Start Authorization System
