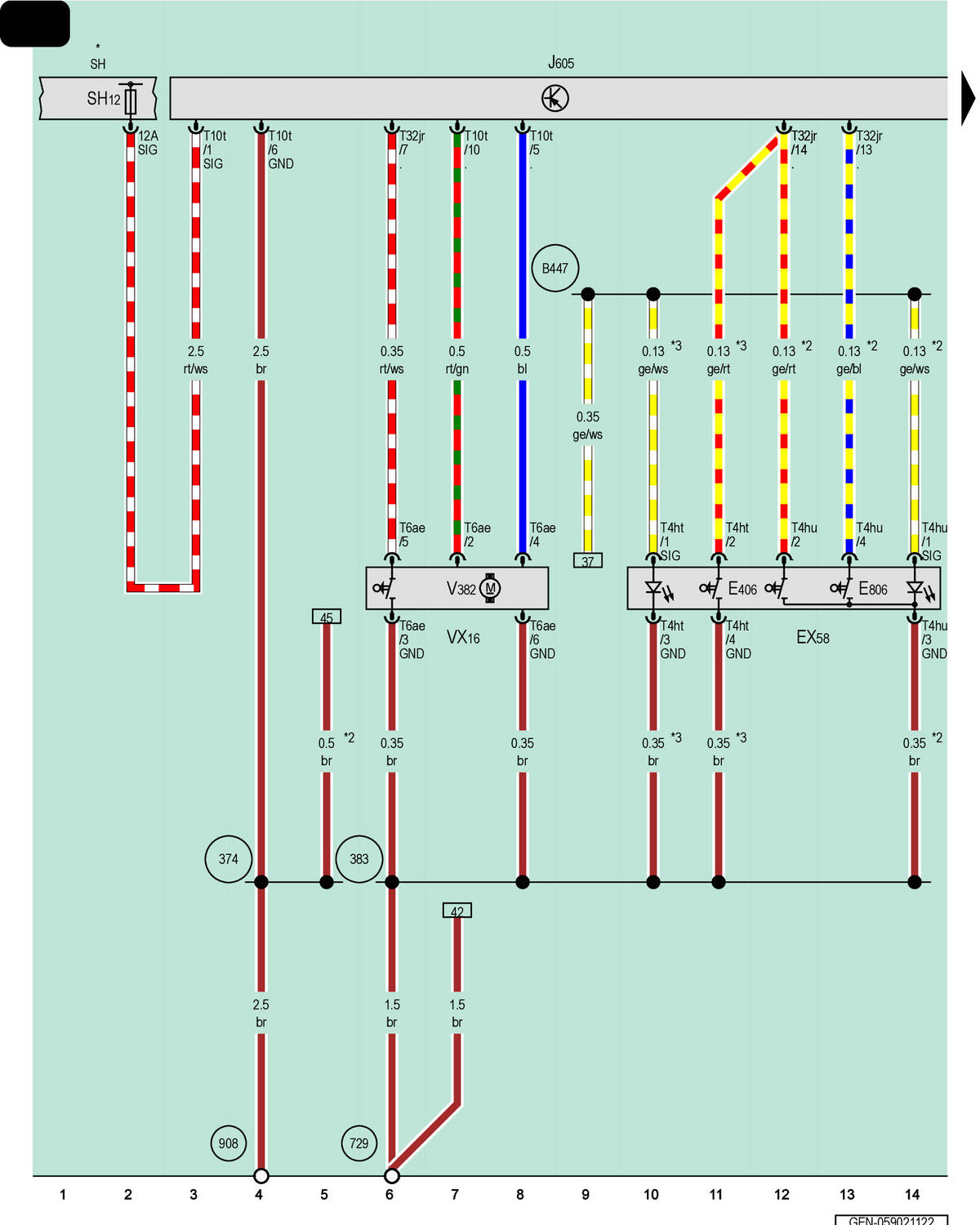

Rear Lid Control Head, Rear Lid Control Module, Rear Lid Closing Aid
EX58
Rear Lid Control Head
E406
Rear Lid Lock Button in Luggage Compartment
E806
Locking Mechanism Button in Rear Lid
J605
Rear Lid Control Module
SH
Fuse Panel H
SH12
Fuse 12 on Fuse Panel H
T4ht
4-Pin Connector, Black
T4hu
4-Pin Connector, Brown
T6ae
6-Pin Connector, Black
T10t
10-Pin Connector, Black
T32jr
32-Pin Connector, Black
VX16
Rear Lid Closing Aid
V382
Rear Lid Closing Aid Motor
374
Ground Connection 9 (in Main Wiring Harness)
383
Ground Connection 18 (in Main Wiring Harness)
729
Ground Connection on Left Rear Wheel Housing
908
Ground Connection 2 on Left Rear Wheel Housing
B447
Luggage Compartment Lamp Connection (in Main Wiring Harness)
*
Refer to Applicable Wiring Diagram for Fuse Positions
*2
For Vehicles with Access/Start Authorization System
*3
For Vehicles Without Access/Start Authorization System
