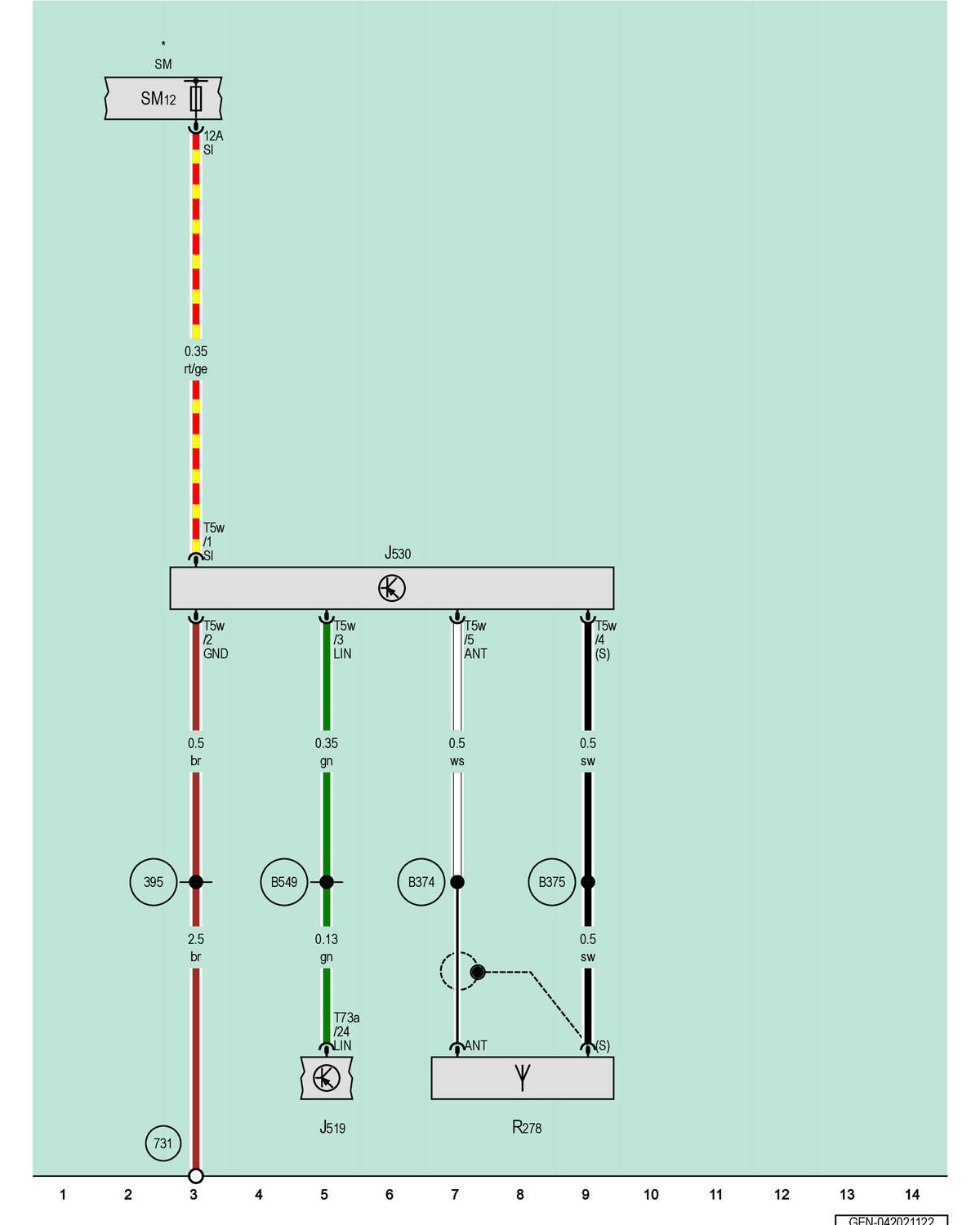

Vehicle Electrical System Control Module, Garage Door Opener Control Module, Garage Door Opener Programming Antenna
J519
Vehicle Electrical System Control Module
J530
Garage Door Opener Control Module
R278
Garage Door Opener Programming Antenna, In the Wiring Harness, Near the Rear Bench Seat
SM
Fuse Panel M
SM12
Fuse 12 on Fuse Panel M
T5w
5-Pin Connector, Black
T73a
73-Pin Connector, Black
395
Ground Connection 30 (in Main Wiring Harness)
731
Ground Connection 2 on Right Rear Wheel Housing
B374
Antenna Connection 4 (in Main Wiring Harness)
B375
Antenna Connection 5 (in Main Wiring Harness)
B549
LIN Bus Connection 2 (in Main Wiring Harness)
*
Refer to Applicable Wiring Diagram for Fuse Positions
