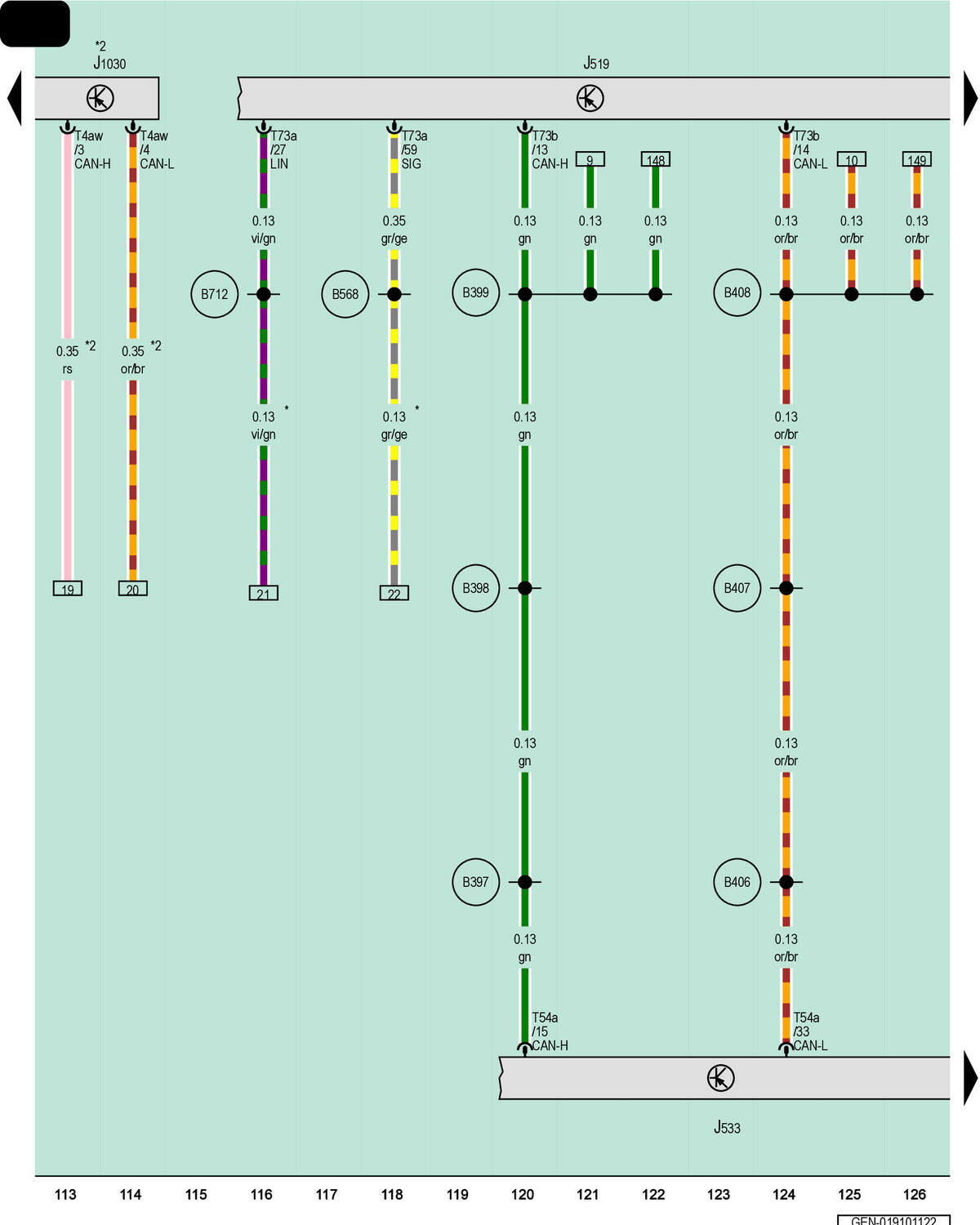

Vehicle Electrical System Control Module, Data Bus On Board Diagnostic Interface, Digital Exterior Rearview Mirror Control Module 1
J519
Vehicle Electrical System Control Module
J533
Data Bus on Board Diagnostic Interface
J1030
Digital Exterior Rearview Mirror Control Module 1
T4aw
4-Pin Connector, Black
T54a
54-Pin Connector, Black
T73a
73-Pin Connector, Black
T73b
73-Pin Connector, Black
B397
Comfort System CAN Bus High Connection 1 (in Main Wiring Harness)
B398
Comfort System CAN Bus High Connection 2 (in Main Wiring Harness)
B399
Comfort System CAN Bus High Connection 3 (in Main Wiring Harness)
B406
Comfort System CAN Bus Low Connection 1 (in Main Wiring Harness)
B407
Comfort System CAN Bus Low Connection 2 (in Main Wiring Harness)
B408
Comfort System CAN Bus Low Connection 3 (in Main Wiring Harness)
B568
Connection 35 (in Main Wiring Harness)
B712
LIN Bus Connection 7 (in Main Wiring Harness)
*
For Vehicles with Ambient Lighting, Version 2
*2
For Vehicles with Digital Exterior Rearview Mirror
