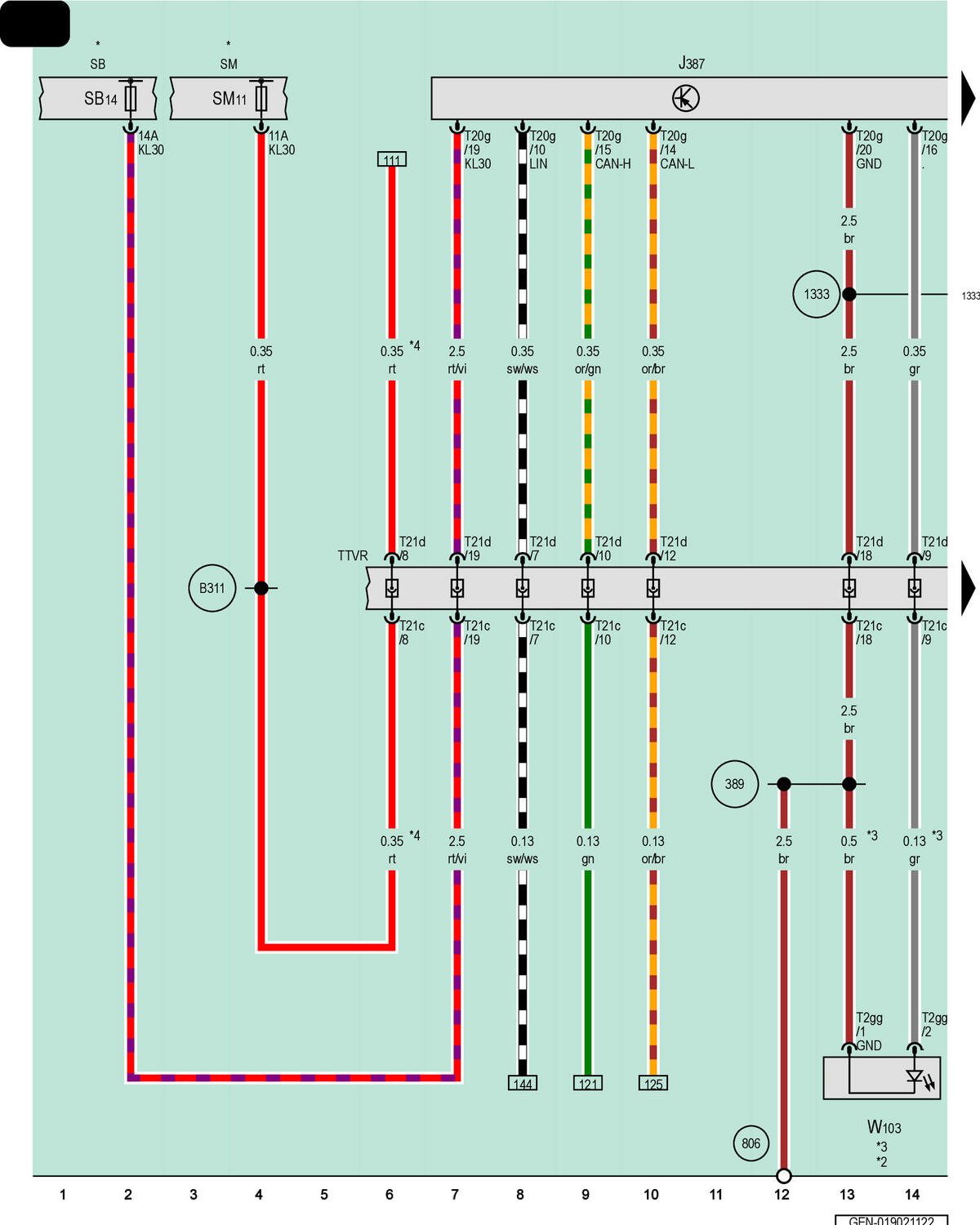

Front Passenger Door Control Module, Front Passenger Side Sill Panel Strip Ambient Lighting Lamp

Courtesy of AUDI OF AMERICA, LLC

J387

Front Passenger Door Control Module

SB

Fuse Panel B

SB14

Fuse 14 (On Fuse Panel B)

SM

Fuse Panel M

SM11

Fuse 11 on Fuse Panel M

T2gg

2-Pin Connector, Black

T20g

20-Pin Connector, White

T21c

21-Pin Connector, Black

T21d

21-Pin Connector, Black

TTVR

Right Front Door Coupling Point

W103

Front Passenger Side Sill Panel Strip Ambient Lighting Lamp

389

Ground Connection 24 (in Main Wiring Harness)

806

Ground Connection 4 on Center Tunnel

1333

Ground Connection 3 (in Right Front Door Wiring Harness)

B311

Positive Connection 15 (30) (in Main Wiring Harness)

*

Refer to Applicable Wiring Diagram for Fuse Positions

*2

Pre-Wired Component

*3

For Vehicles with Ambient Lighting, Version 1

*4

For Vehicles with Digital Exterior Rearview Mirror
