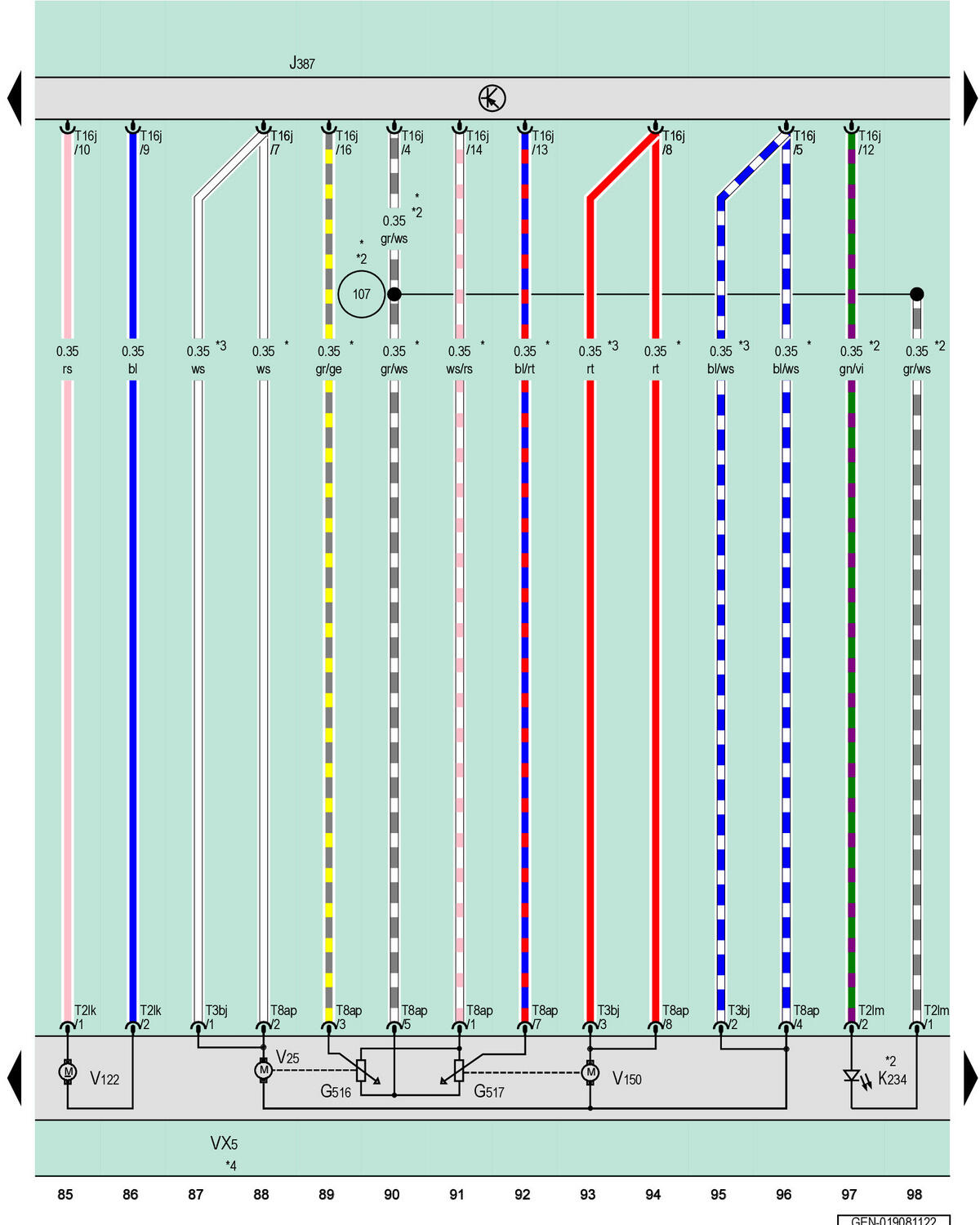

Front Passenger Door Control Module, Front Passenger Exterior Rearview Mirror

Courtesy of AUDI OF AMERICA, LLC

G516

Front Passenger Exterior Rearview Mirror Horizontal Position Sensor

G517

Front Passenger Exterior Rearview Mirror Vertical Position Sensor

J387

Front Passenger Door Control Module

K234

Lane Change Assistance Warning Lamp in Front Passenger Exterior Rearview Mirror

T2lk

2-Pin Connector

T2lm

2-Pin Connector

T3bj

3-Pin Connector

T8ap

8-Pin Connector

T16j

16-Pin Connector

VX5

Front Passenger Exterior Rearview Mirror

V25

Front Passenger Side Mirror Adjustment Motor 2

V122

Front Passenger Exterior Rearview Mirror Folding Motor

V150

Front Passenger Mirror Adjustment Motor

107

Ground Connection (in Exterior Mirror Wiring Harness)

*

For Vehicles with Power Memory Seats

*2

For Vehicles with Lane Change Assistance

*3

Front Passenger Seat Without Memory Function

*4

Pre-Wired Component
