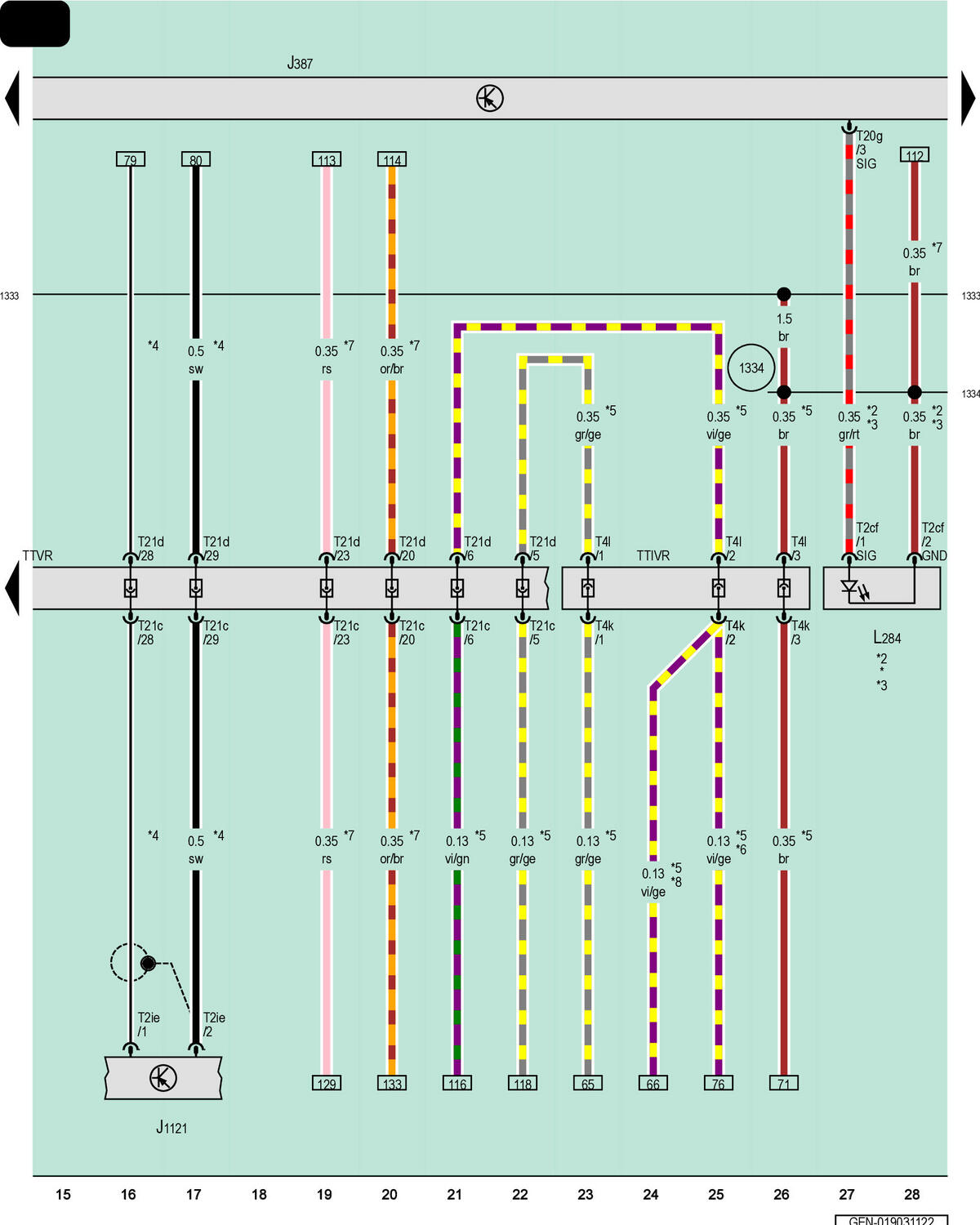

Front Passenger Door Control Module, Driver Assistance Systems Control Module, Front Passenger Exterior Door Handle Illumination Lamp
J387
Front Passenger Door Control Module
J1121
Driver Assistance Systems Control Module
L284
Front Passenger Exterior Door Handle Illumination Lamp
T2cf
2-Pin Connector, Black
T2ie
2-Pin Connector, Purple
T4k
4-Pin Connector, Brown
T4l
4-Pin Connector, Brown
T20g
20-Pin Connector, White
T21c
21-Pin Connector, Black
T21d
21-Pin Connector, Black
TTIVR
Coupling Point in Right Front Door
TTVR
Right Front Door Coupling Point
1333
Ground Connection 3 (in Right Front Door Wiring Harness)
1334
Ground Connection 4 (in Right Front Door Wiring Harness)
*
Pre-Wired Component
*2
For Vehicles with Ambient Lighting, Version 1
*3
Through September 2019
*4
For Vehicles with Peripheral Camera
*5
For Vehicles with Ambient Lighting, Version 2
*6
Omitted as a Running Change
*7
For Vehicles with Digital Exterior Rearview Mirror
*8
Running Change
