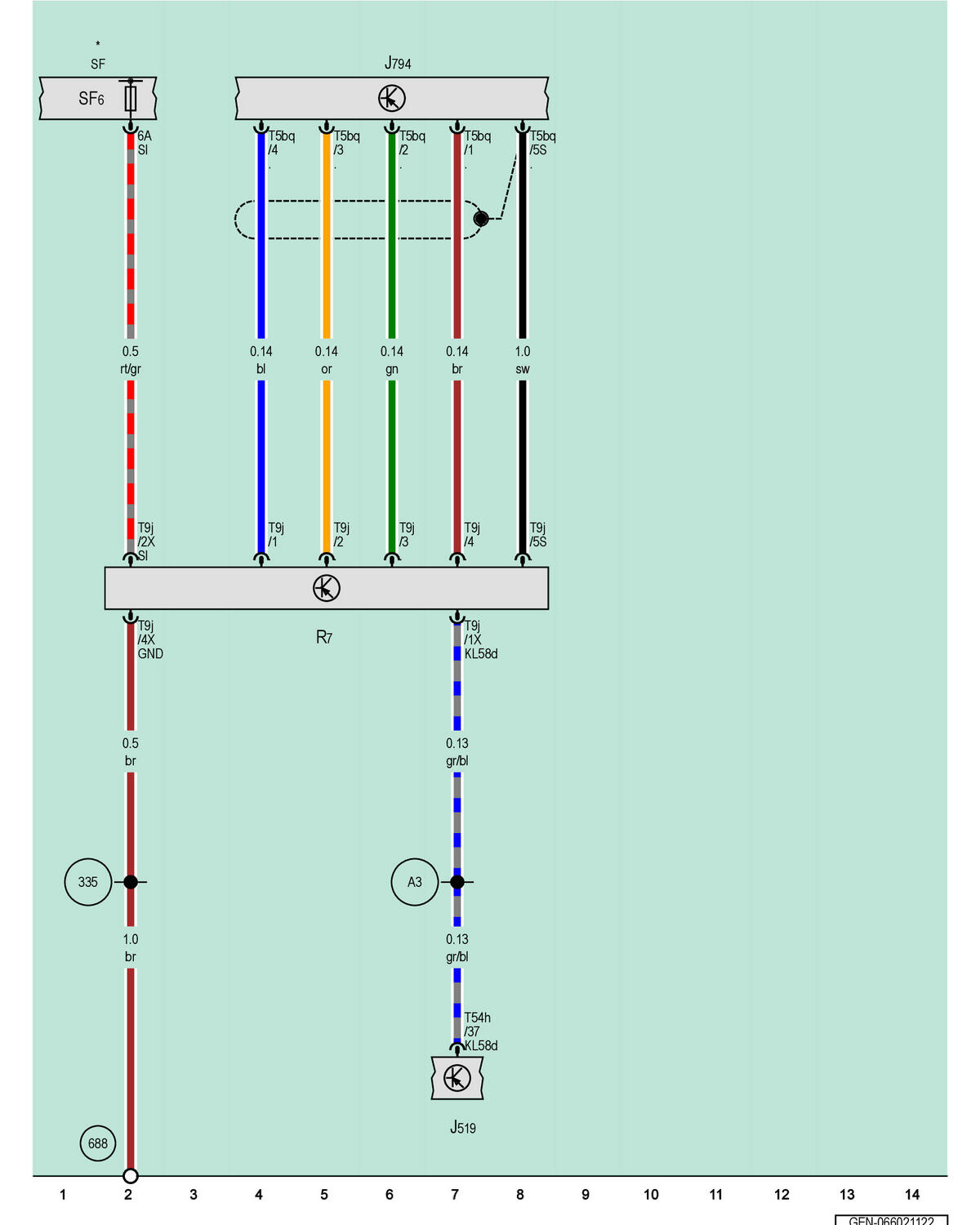

Vehicle Electrical System Control Module, Information Electronics Control Module 1, DVD Player
J519
Vehicle Electrical System Control Module
J794
Information Electronics Control Module 1
R7
DVD Player
SF
Fuse Panel F
SF6
Fuse 6 (On Fuse Panel F)
T5bq
5-Pin Connector, Blue
T9j
9-Pin Connector, Blue
T54h
54-Pin Connector, Black
335
Ground Connection 5 (in Instrument Panel Wiring Harness)
688
Ground Connection 2 on Center Tunnel
A3
Positive Connection (58) (in Instrument Panel Wiring Harness)
*
Refer to Applicable Wiring Diagram for Fuse Positions
