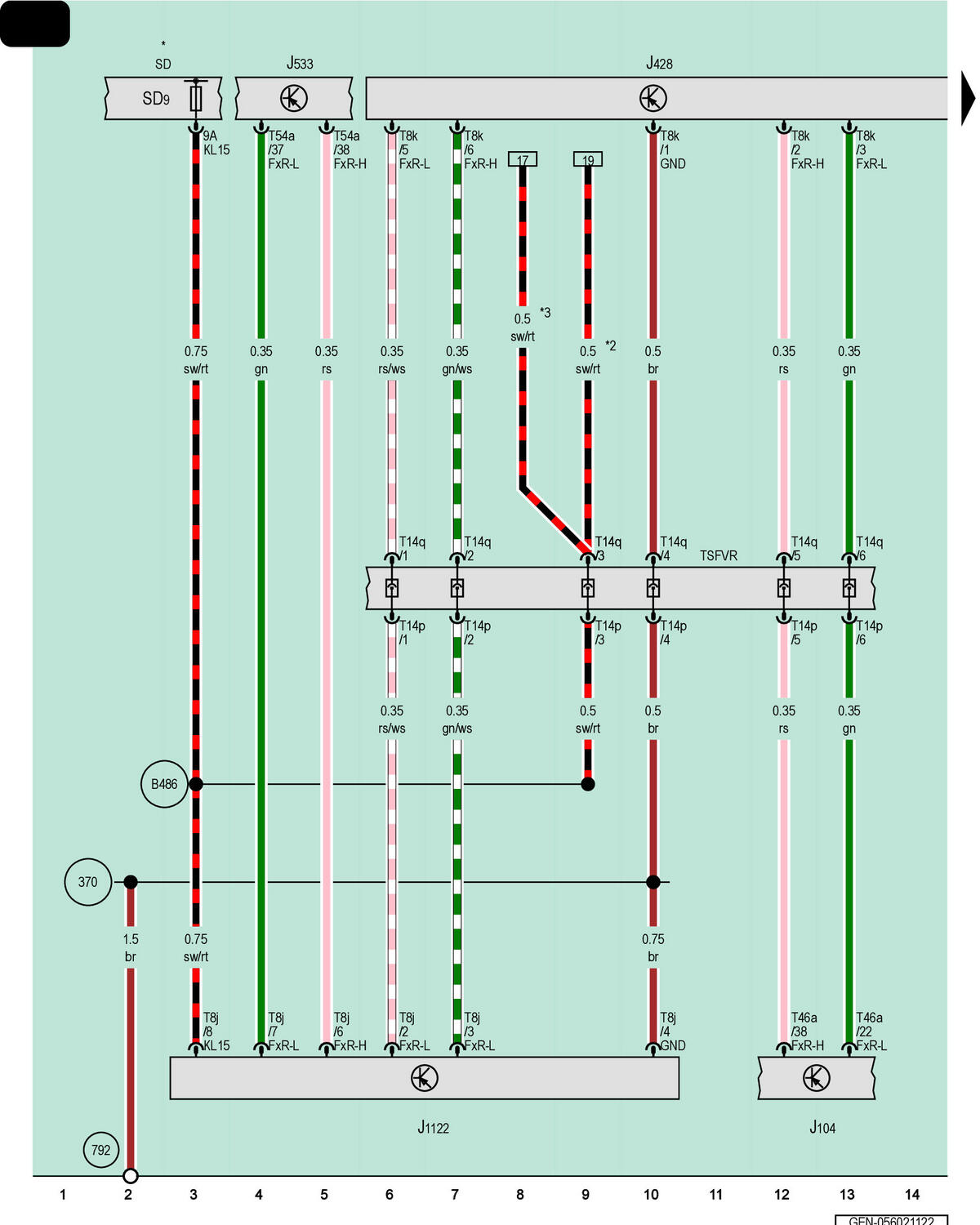

Abs Control Module, Control Module For Adaptive Cruise Control, Data Bus On Board Diagnostic Interface, Laser Distance Regulation Control Module

Courtesy of AUDI OF AMERICA, LLC

J104

ABS Control Module

J428

Control Module for Adaptive Cruise Control

J533

Data Bus on Board Diagnostic Interface

J1122

Laser Distance Regulation Control Module

SD

Fuse Panel D

SD9

Fuse 9 (On Fuse Panel D)

T8j

8-Pin Connector, Black

T8k

8-Pin Connector, Black

T14p

14-Pin Connector, Black

T14q

14-Pin Connector, Black

T46a

46-Pin Connector, Black

T54a

54-Pin Connector, Black

TSFVR

Coupling Point on Right Front Bumper

370

Ground Connection 5 (in Main Wiring Harness)

792

Ground Connection in Right Front Wheel Housing

B486

Connection 22 (in Main Wiring Harness)

*

Refer to Applicable Wiring Diagram for Fuse Positions

*2

Through November 2022

*3

From November 2022
