Overview - Center Console

Overview - Center Console

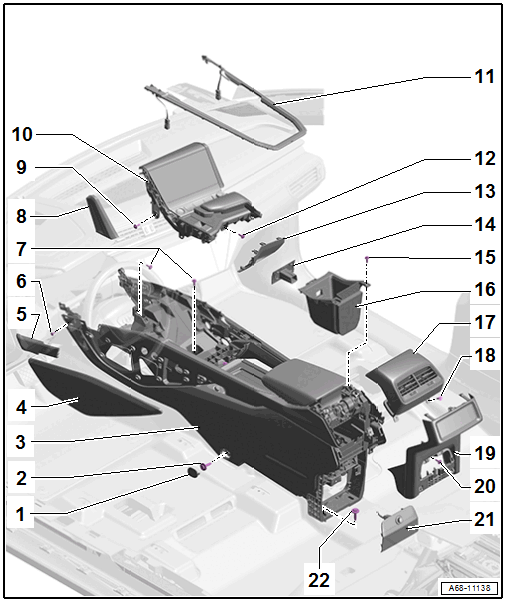

Fig 1: Exploded View Of Center Console

Courtesy of AUDI OF AMERICA, LLC

1. Cap
   • Quantity: 2
2. Bolt
   • Quantity: 2
   • 20 Nm
3. Center Console
   • Refer to Center Console, Removing and Installing  .
4. Front Footwell Trim Panel
   • Quantity: 2
   • Refer to Front Footwell Center Console Trim Panel, Removing and Installing  .
5. Side Front Trim Panel
   • Quantity: 2
   • Refer to CENTER CONSOLE SIDE TRIM PANEL, REMOVING AND INSTALLING
6. Bolt
   • Quantity: 2
   • 1.5 Nm
7. Bolt
   • Quantity: 3
   • 3 Nm
8. Side Trim
   • Quantity: 2
   • Refer to CENTER CONSOLE INSERT SIDE TRIM, REMOVING AND INSTALLING
9. Bolt
   • Quantity: 4
   • 3 Nm
10. Insert
    • Refer to Center Console Insert, Removing and Installing  .
11. Decorative Trim
    • Refer to Center Console Decorative Trim, Removing and Installing  .
12. Bolt
    • Quantity: 2
    • 3 Nm
13. Front Inner Trim Panel
    • Refer to CENTER CONSOLE INNER CENTER TRIM, REMOVING AND INSTALLING
14. Rear Inner Trim Panel
    • Refer to CENTER CONSOLE INNER CENTER TRIM, REMOVING AND INSTALLING
15. Bolt
    • Quantity: 4
    • 3 Nm
16. Storage Compartment
    • Refer to CENTER CONSOLE FRONT STORAGE COMPARTMENT, REMOVING AND INSTALLING
17. Upper Rear Trim
    • Refer to UPPER REAR CENTER CONSOLE TRIM, REMOVING AND INSTALLING
18. Bolt
    • Quantity: 2
    • 3 Nm
19. Rear Trim
    • Refer to UPPER REAR CENTER CONSOLE TRIM, REMOVING AND INSTALLING
20. Bolt
    • 3 Nm
21. Lower Rear Trim
    • Refer to LOWER REAR CENTER CONSOLE TRIM, REMOVING AND INSTALLING
22. Bolt
    • Quantity: 2
    • 20 Nm

Overview - Center Console Attachments

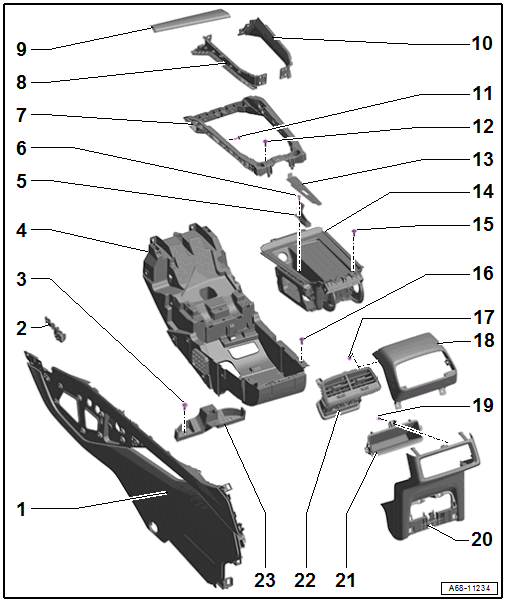

Fig 2: Exploded View Of Center Console Attachments

Courtesy of AUDI OF AMERICA, LLC

1. Side Trim Panel
   • Quantity: 2
   • Refer to Center Console Trim Panel, Removing and Installing  .
2. Front Bracket for Trim Panel
   • Quantity: 2
3. Bolt
   • Quantity: 2
   • 8 Nm
4. Center Console Support
   • Refer to CENTER CONSOLE SUPPORT, REMOVING AND INSTALLING
5. Cell Phone Bracket
   • Installed depending on vehicle equipment
6. Bolt
   • 1.5 Nm
7. Upper Support
   • Refer to CENTER CONSOLE UPPER SUPPORT, REMOVING AND INSTALLING
8. Inner Trim Panel
   • Refer to CENTER CONSOLE INNER CENTER TRIM, REMOVING AND INSTALLING
9. Upper Trim
   • Refer to CENTER CONSOLE INSERT UPPER TRIM, REMOVING AND INSTALLING
10. Inner Trim Panel
    • Refer to CENTER CONSOLE INNER CENTER TRIM, REMOVING AND INSTALLING
11. Bolt
    • Quantity: 6
    • 2 Nm
12. Bolt
    • Quantity: 4
    • 3 Nm
13. Insert
14. Cupholder
    • Refer to Cupholder, Removing and Installing  .
15. Bolt
    • Quantity: 4
    • 3 Nm
16. Bolt
    • Quantity: 6
    • 3 Nm
17. Bolt
    • Quantity: 4
    • 1.5 Nm
18. Upper Rear Trim
    • Refer to UPPER REAR CENTER CONSOLE TRIM, REMOVING AND INSTALLING
19. Bolt
    • Quantity: 3
    • 1.5 Nm
20. Rear Trim
    • Refer to REAR CENTER CONSOLE TRIM, REMOVING AND INSTALLING
21. Rear Storage Compartment
    • Installed depending on vehicle equipment
    • Refer to CENTER CONSOLE REAR STORAGE COMPARTMENT, REMOVING AND INSTALLING
22. Rear Vent
    • Installed depending on vehicle equipment
    • Refer to Rear Center Console Vent, Removing and Installing  .
23. Rear Bracket
    • Refer to Center Console Bracket, Removing and Installing  .
