Overview - Front Wheel Housing Liner

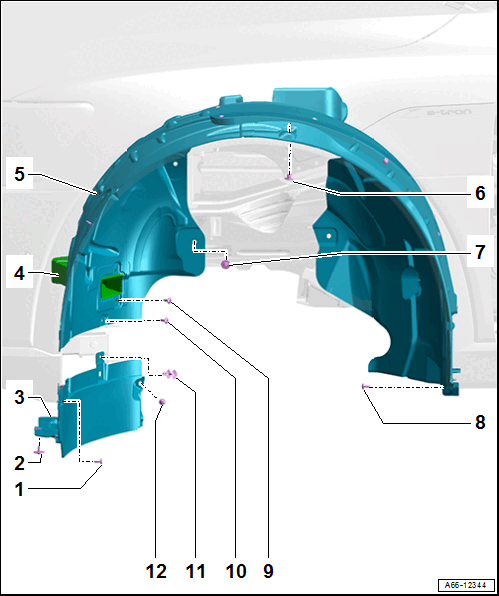

Fig 1: Exploded View Of Front Wheel Housing Liner
GWWA66-12344Courtesy of AUDI OF AMERICA, LLC
  1. Bolt
    • 2 Nm
  2. Bolt
    • Quantity: 3
    • 2 Nm
  3. Wheel Spoiler
    • Front
  4. Air Duct
    • For brake cooling
  5. Wheel Housing Liner
  6. Expanding Rivet
    • Quantity: 2
  7. Nut
    • Quantity: 6
    • 2 Nm
  8. Bolt
    • Quantity: 2
    • 2 Nm
  9. Bolt
    • Quantity: 2
    • 2 Nm
  10. Bolt
    • Quantity: 5
    • 2 Nm
  11. Expanding Rivet
  12. Bolt
    • 7.5 Nm
