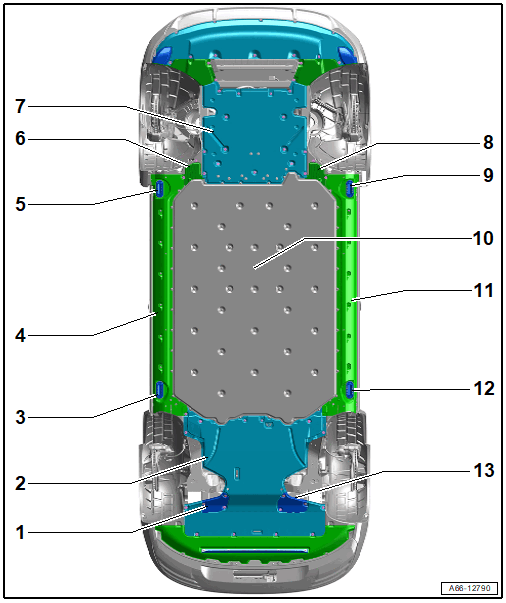

Overview - Underbody Trim Panels
- Cover
- Rear
- Right
- Bolts: 2 Nm
- Underbody Trim Panel
- Rear
- Tightening Specifications:
- M6 bolts: 8 Nm
- Bolts: 2 Nm
- Vehicle Lifting Point
- Rear
- Right
- Underbody Trim Panel
- Side
- Right
- M6 bolts: 7 Nm
- Bolts: 2 Nm
- Vehicle Lifting Point
- Front
- Right
- Cover
- Front
- Right
- Bolts: 2 Nm
- Underbody Trim Panel
- Front
- M6 bolts: 8 Nm
- Bolts: 2 Nm
- Cover
- Front
- Left
- Bolts: 2 Nm
- Vehicle Lifting Point
- Front
- Left
- High-Voltage Battery Impact Guard
- There are different versions. Refer to the appropriate Electronic Parts Information.
- Removing and installing. Refer to HIGH-VOLTAGE BATTERY IMPACT GUARD, REMOVING AND INSTALLING .
Outer Impact Guard Bolts
- Tighten all around in steps
- 1. Step, 8 Nm
- 2. Step, 12 Nm
- 3. Step, 15 Nm
Inner Impact Guard Nuts
- Tighten in steps
- 1. Step, 8 Nm
- 2. Step, 12 Nm
- 3. Step, 15 Nm
- Underbody Trim Panel
- Side
- Left
- M6 bolts: 7 Nm
- Bolts: 2 Nm
- Vehicle Lifting Point
- Rear
- Left
- Cover
- Rear
- Left
- Bolts: 2 Nm
