Center Armrest Upper Section, Removing And Installing: Removing

-- Fold the center armrest up.

-- Remove the center armrest lower cover. Refer to Center Armrest Cover, Removing and Installing  .

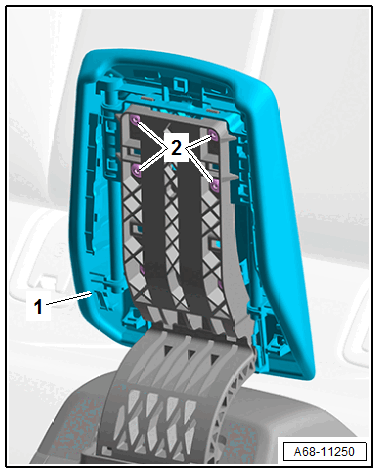

-- Remove the bolts -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Disengage and remove the center armrest upper section -1-.
