Center Armrest Cover, Removing And Installing: Removing

-- Fold the center armrest up.

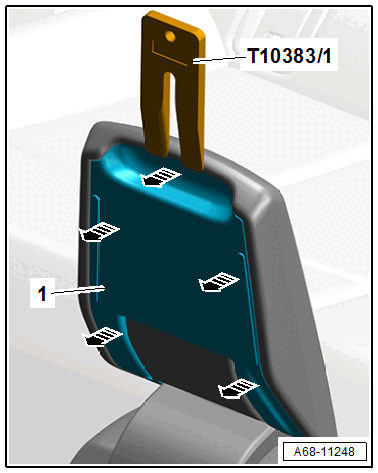

-- Insert the Wedge Set:T10383/1  between the cover -1- and the center armrest.

Courtesy of AUDI OF AMERICA, LLC

-- Unclip left cover -1- using the wedge -arrows- and remove it.

-- Insert the wedge between the cover and the center armrest.

Courtesy of AUDI OF AMERICA, LLC

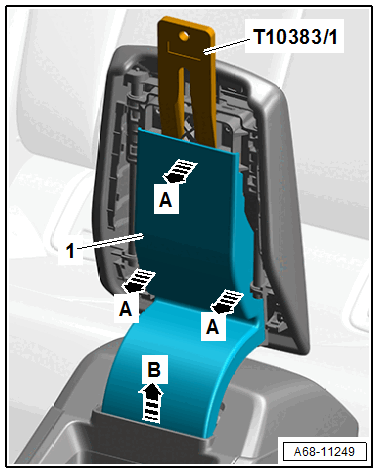

-- Unclip the cover -1- using a wedge -A arrows-.

-- Pivot the cover -1- to the front and remove from below -arrow B-.

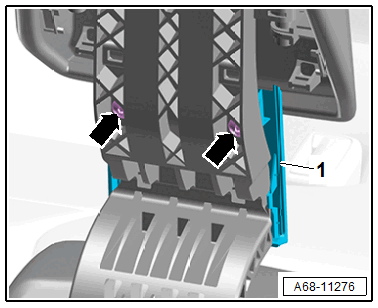

-- Remove the bolts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Disengage the cover -1- and remove it.
