Overview - Screen Separator

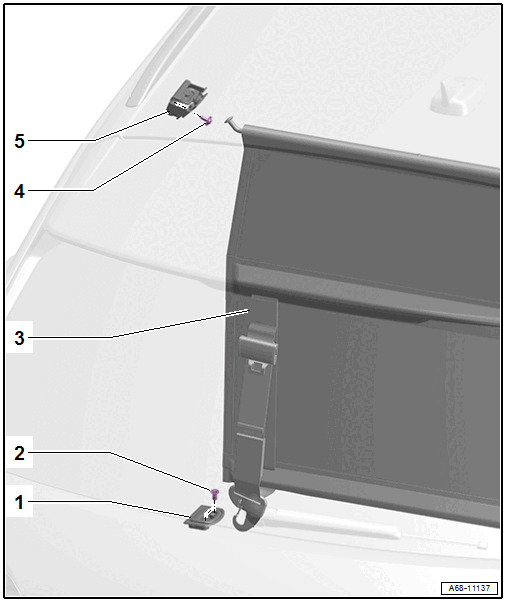

Fig 1: Exploded View Of Screen Separator

GWWA68-11137

Courtesy of AUDI OF AMERICA, LLC

Tie Down
- Quantity: 4
- Refer to Tie Down, Removing and Installing .
Bolt
- Quantity: 2
- Refer to Overview - Luggage Compartment Side Trim Panel .
Screen Separator
Bolt
- 9 Nm
Mounting Eye
- Quantity: 4
- Refer to Screen Separator Mounting Eye, Removing and Installing .
