Rear Center Console Vent, Removing And Installing: Removing

-- Remove the rear upper center console trim. Refer to Center Console Rear Trim, Removing and Installing  .

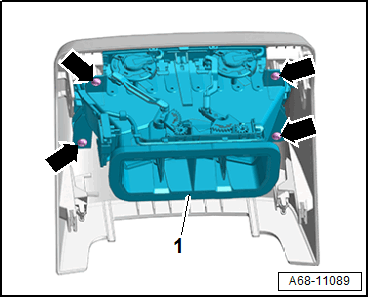

-- Remove the bolts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the vent -1- from the trim.
