Center Console Insert, Removing And Installing: Removing

-- Move the front seats as far back as possible.

-- Remove the front footwell center console trim panels. Refer to Front Footwell Center Console Trim Panel, Removing and Installing  .

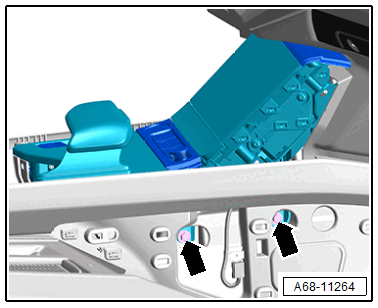

-- Remove the left and right bolts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the center console insert side trim. Refer to CENTER CONSOLE INSERT SIDE TRIM, REMOVING AND INSTALLING .

-- Remove the center console decorative trim. Refer to Center Console Decorative Trim, Removing and Installing  .

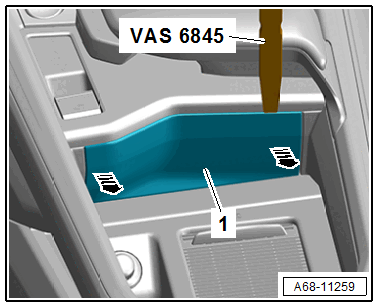

-- Unclip the front trim panel -1- using a scraper from the Scraper Set: VAS 6845  -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Disengage the remaining clips and remove the trim panel.

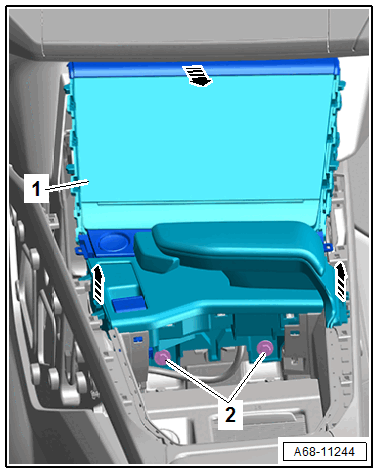

-- Remove the bolts -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the center console insert -1- carefully upward and pull toward the rear -arrows-.

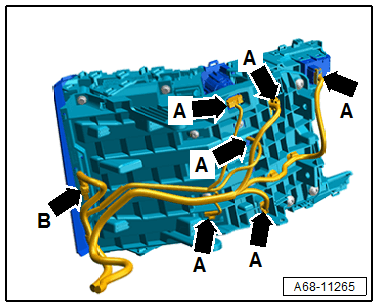

-- Carefully turn the center console insert and disconnect the connectors -A arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Free up the wires.

-- Remove the center console insert carefully toward the rear under the instrument panel and disconnect the antenna wire -arrow B-.

-- Remove the center console insert.
