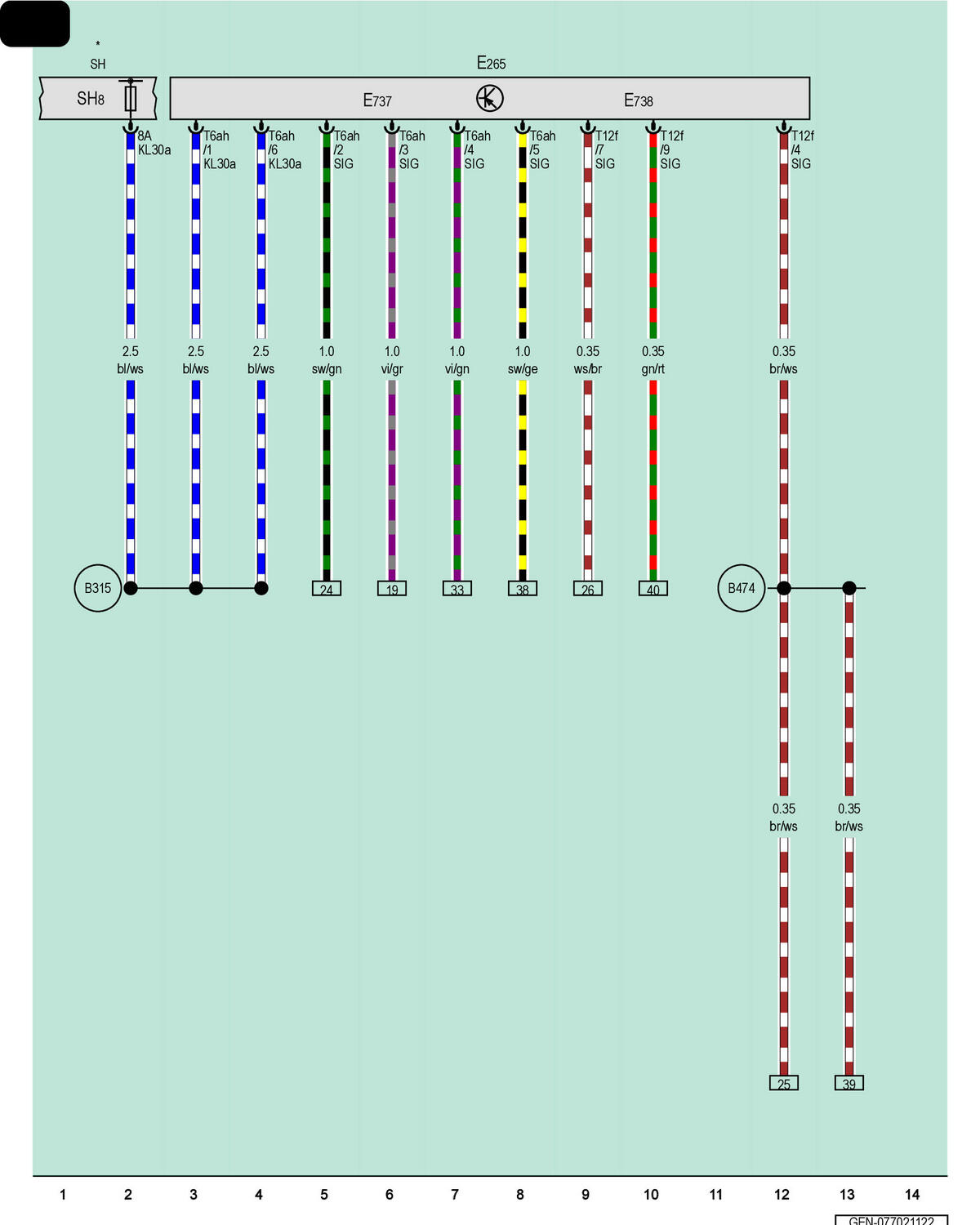

Rear A/C Display Control Head

Courtesy of AUDI OF AMERICA, LLC

E265

Rear A/C Display Control Head

E737

Left Rear Seat Heating Button

E738

Right Rear Seat Heating Button

SH

Fuse Panel H

SH8

Fuse 8 on Fuse Panel H

T6ah

6-Pin Connector, Black

T12f

12-Pin Connector, Black

B315

Positive Connection 1 (30a) (in Main Wiring Harness)

B474

Connection 10 (in Main Wiring Harness)

*

Refer to Applicable Wiring Diagram for Fuse Positions
